Astro DS Duct Sleeve
Intumescent Duct Sleeve
Share page:
Download any of the following data sheets:
KEY: CE Marked Documents
DoP's are Declaration of Performance CoC's are Certificate of Constancy of Performance
ETA's are European Technical Assessment Sheet
Product Features
- Tested in accordance with BS 476 Parts 20 and 22 : 1987 and EN 1366-3 : 2009.
- Uncapped / Uncapped (Open | Open) fire tested as required for ventilation systems.
- Suitable for use through a wide range of fire partition walls.
- Offers excellent acoustic insulation.
- Maintains the thermal insulation of the duct through the penetration.
- Maintains vapour seal of existing insulation.
- Sleeve can be easily fitted only requiring access from one side.
- Allows the thermal movement of the duct.
- Simple to install without special tools or skills.
Description
The Astroflame range of Astro DS duct sleeves are intended for use where a ventilation duct passes through a fire rated wall. The sleeve maintains the integrity of the fire rated wall which would otherwise be lost.
In the event of a fire, the advanced Astro DS Duct Sleeve will expand with the heat, crushing the duct and closing off the hole to the fire for up to 120 minutes except the 220x90mm version which is rated up to 60 minutes.
The Ventilation duct sleeves are available to fit all common sizes of plastic ventilation duct and are suitable for retro fitting with access only required from one side.
Product Availability

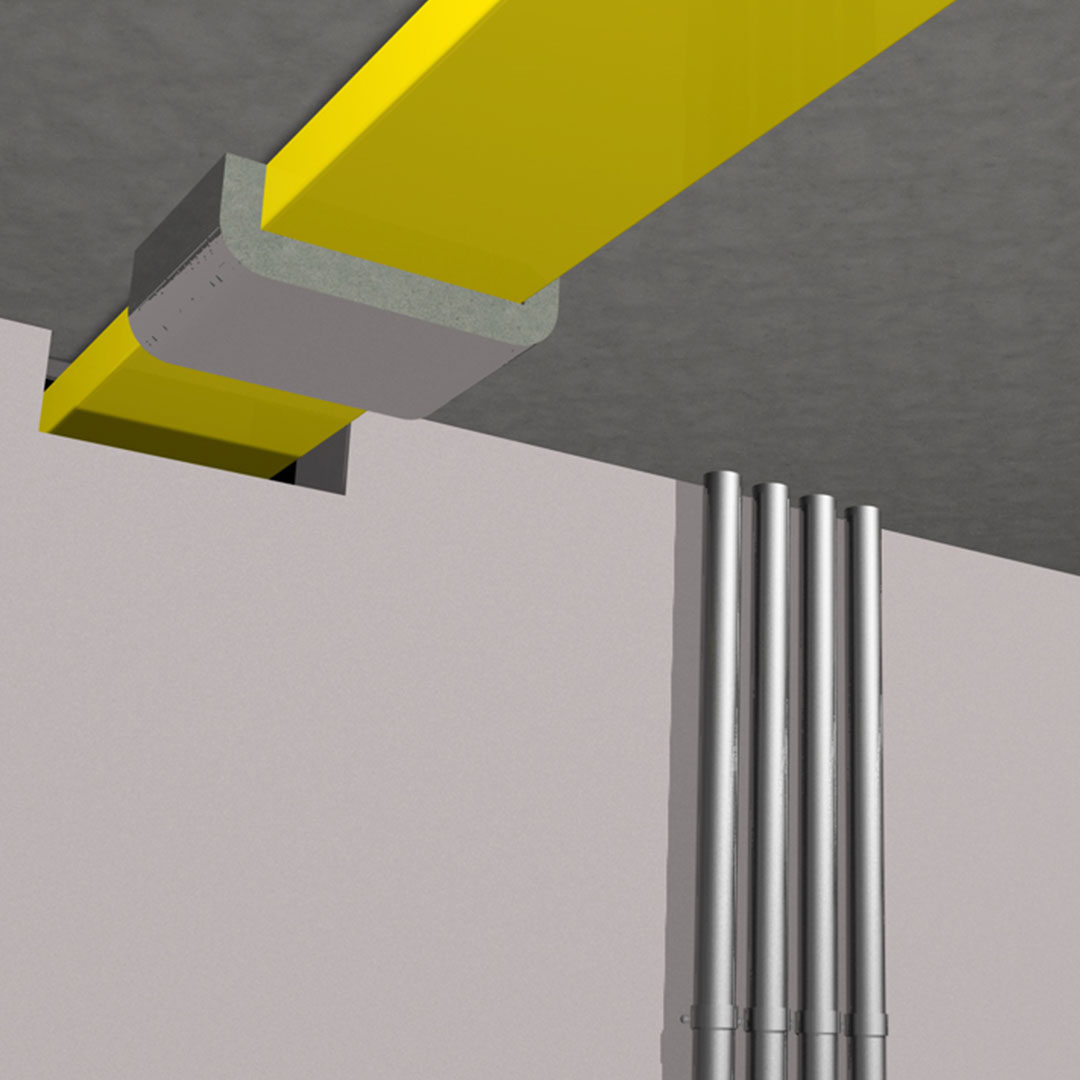

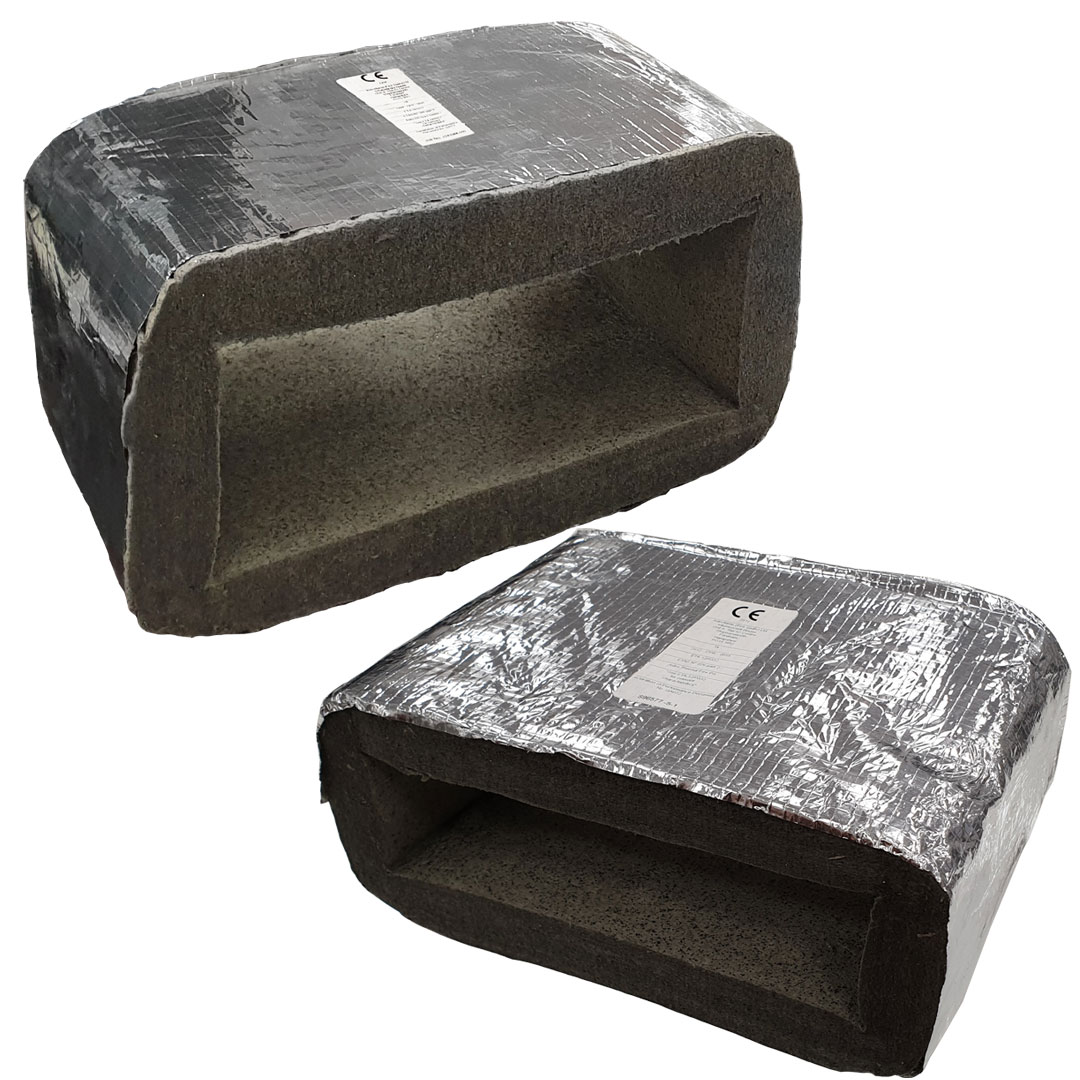

Astro DS Duct sleeves are currently available in the following nominal sizes:
| Product Code | Description | Width | Height | Length |
| AFDS110 | Astro DS Duct Sleeve | 110mm | 54mm | 180mm |
| AFDS204 | Astro DS Duct Sleeve | 204mm | 60mm | 180mm |
| AFDS22090 | Astro DS Duct Sleeve | 220mm | 90mm | 180mm |
| AFDS234 | Astro DS Duct Sleeve | 234mm | 29mm | 180mm |
| AFDSC100 | Astro DS Duct Sleeve Circular | - | 100mm Diam. | 150mm |
| AFDSC125 | Astro DS Duct Sleeve Circular | - | 125mm Diam. | 280mm |
| AFPC110X/CE | Astro DS Duct Sleeve Circular | - | 150mm Diam. | 180mm |

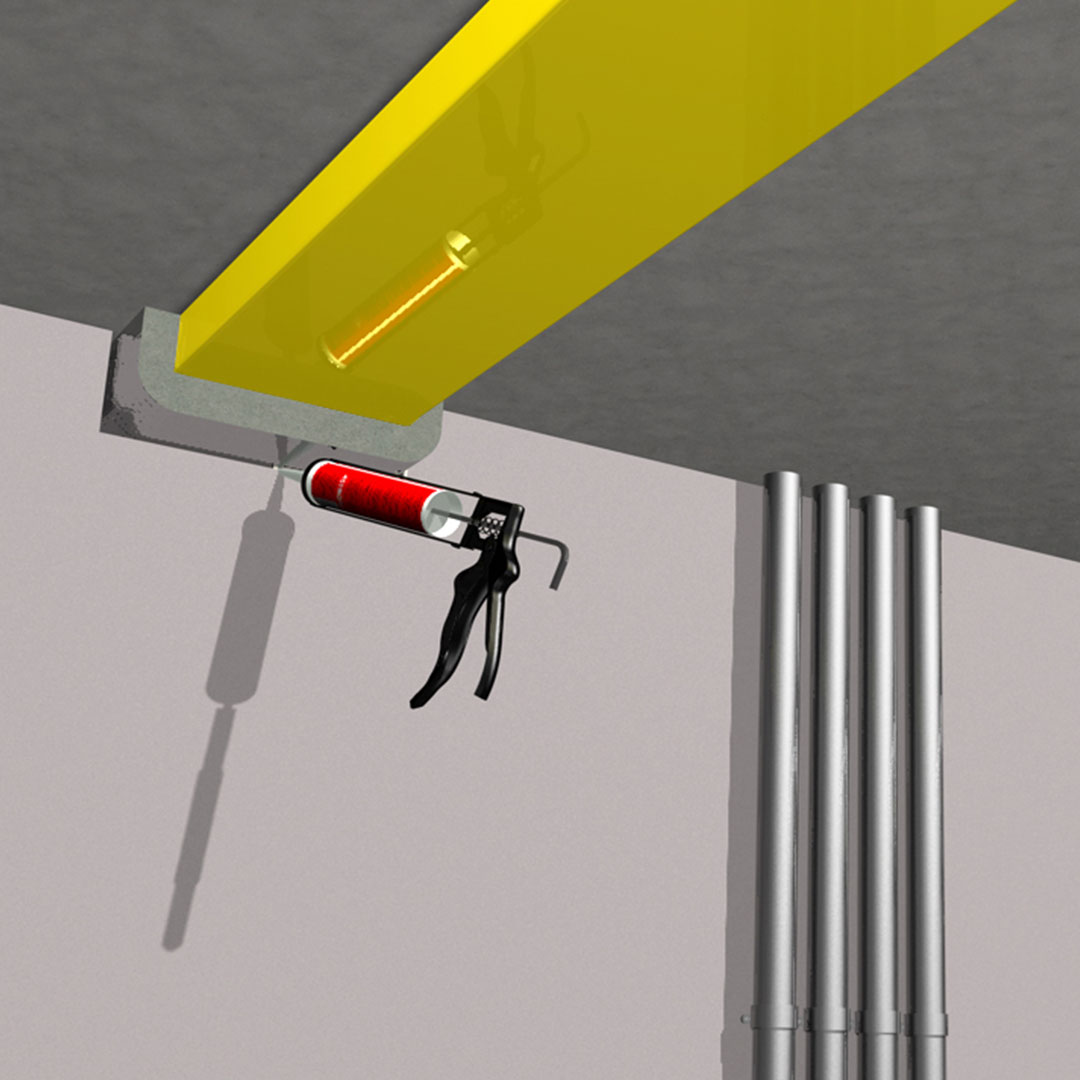

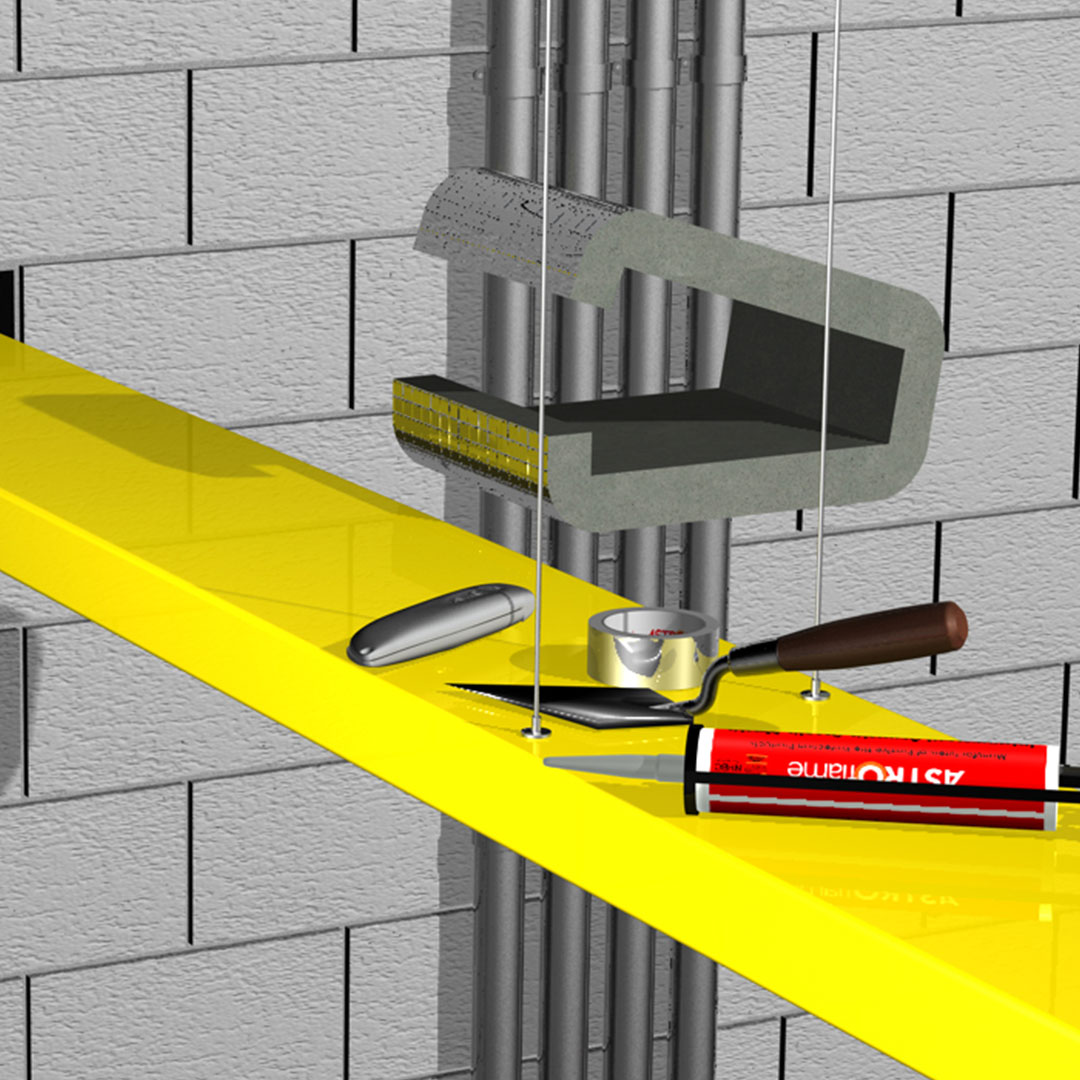

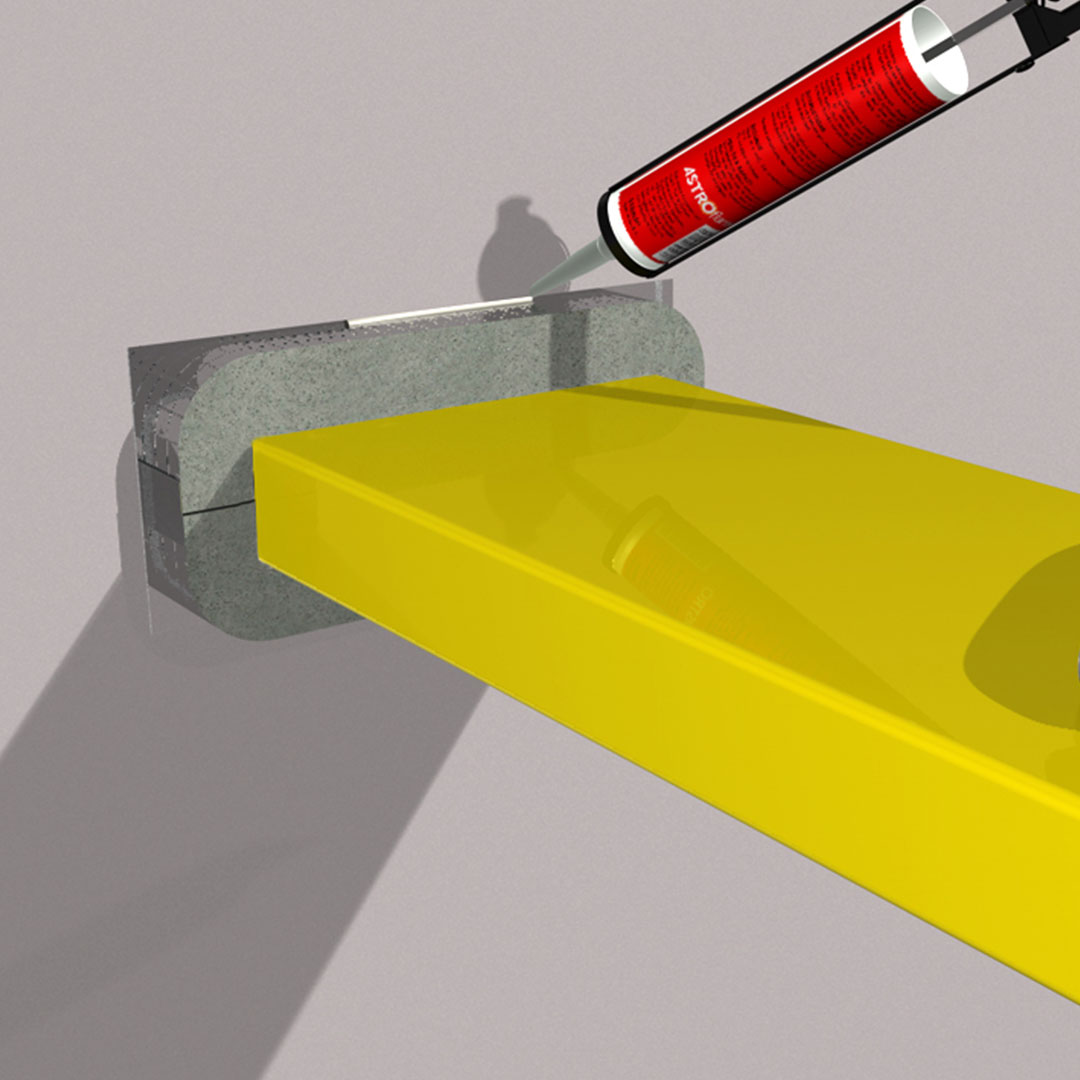

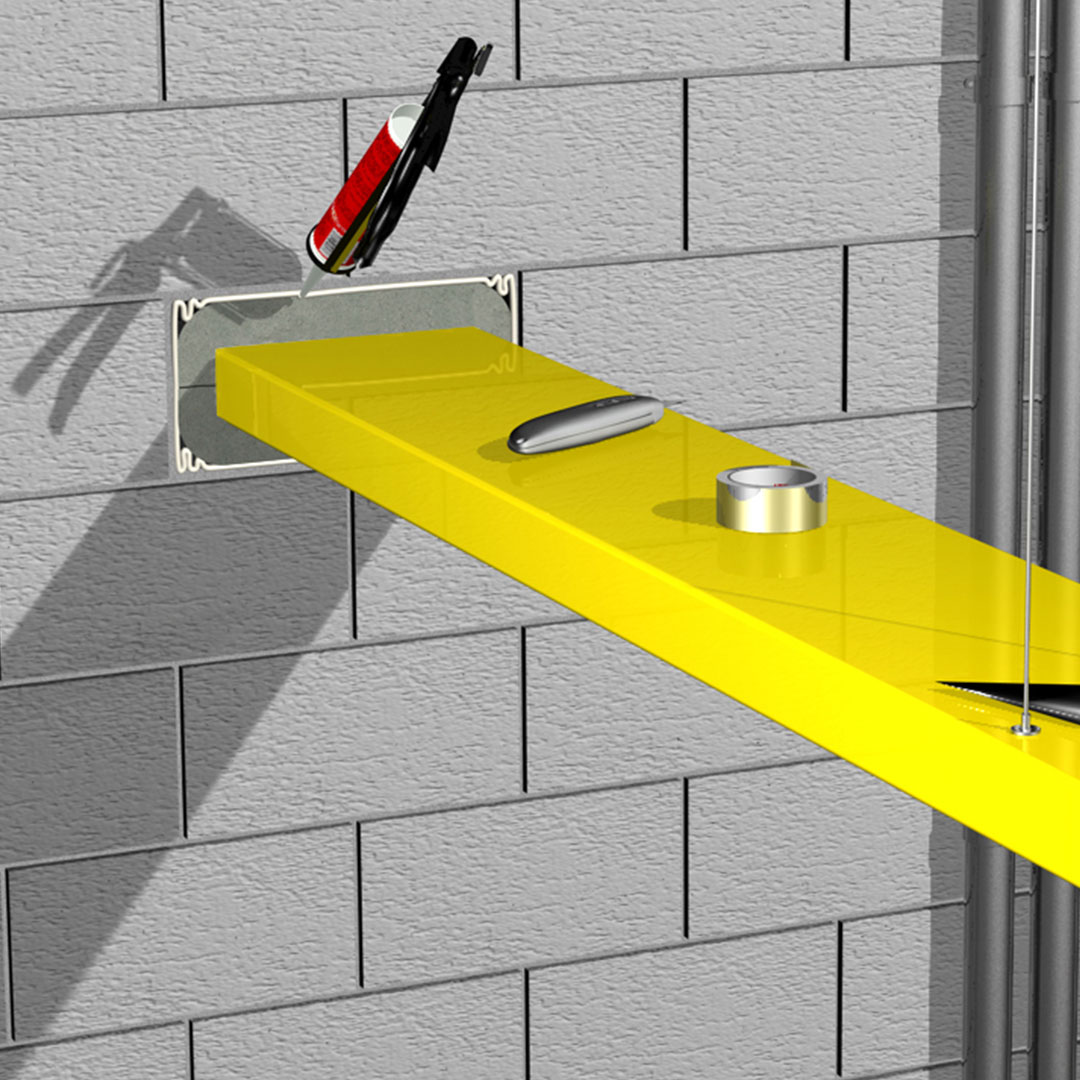

Installation
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
Maintenance
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.
Competency
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Additional Notes
Please refer to the ETA sheet for fields of application for this product. For further information on installation requirements please refer to the duct manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
Health and Safety
The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
