Astro DS Low Profile Duct Sleeve

Intumescent Duct Sleeve Low Profile CE Marked  Intumescent Duct Sleeve

Share page:



Astro DS Low Profile Duct Sleeve Product Image
Astro DS Low Profile Duct Sleeve
DS Low Profile Duct Sleeve

Intumescent Low Profile Duct Sleeve Product Image
Intumescent Low Profile Duct Sleeve
Low Profile Duct Sleeve Product
Download any of the following data sheets:

Product Data Sheet

Safety Data Sheet

Install Video

DoP Astro DS Duct Sleeve +

CoC Astro DS Duct Sleeve +

Astro DS Duct Sleeve + ETA

KEY: CE Marked Documents
CE Information DoP's are Declaration of Performance
CoC's are Certificate of Constancy of Performance
ETA's are European Technical Assessment Sheet


Product Features
  • CE Marked.
  • Compact Duct Sleeve up to 120 minute rating to EN 1366-3 : 2009.
  • Tested in accordance with EN 13501-1 : 2007.
  • Uncapped / Uncapped (Open | Open) fire tested as required for ventilation systems.
  • Suitable for use through a wide range of fire partition walls.
  • Reduced profile - 10-15mm thickness - allows installation at any position in the wall, even tight to the floor slab, without removing the top side.
  • Does not need metal sleeving.
  • Sleeve can be easily fitted and only requires access from one side.
  • Sleeve can be slit to allow retrofitting.
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 10 | Astro DS Duct Sleeve Low Profile | AFDS110LP | 110mm x 54mm x 180mm

Telephone:

Fax:

Email:

Once your order is received we will phone to confirm all details. For in-stock items orders received before 3pm (Monday-Friday) are dispatched for delivery on the following working day (Monday-Friday).

Description
CE ETA Label Astro DS Low Profile Duct Sleeve

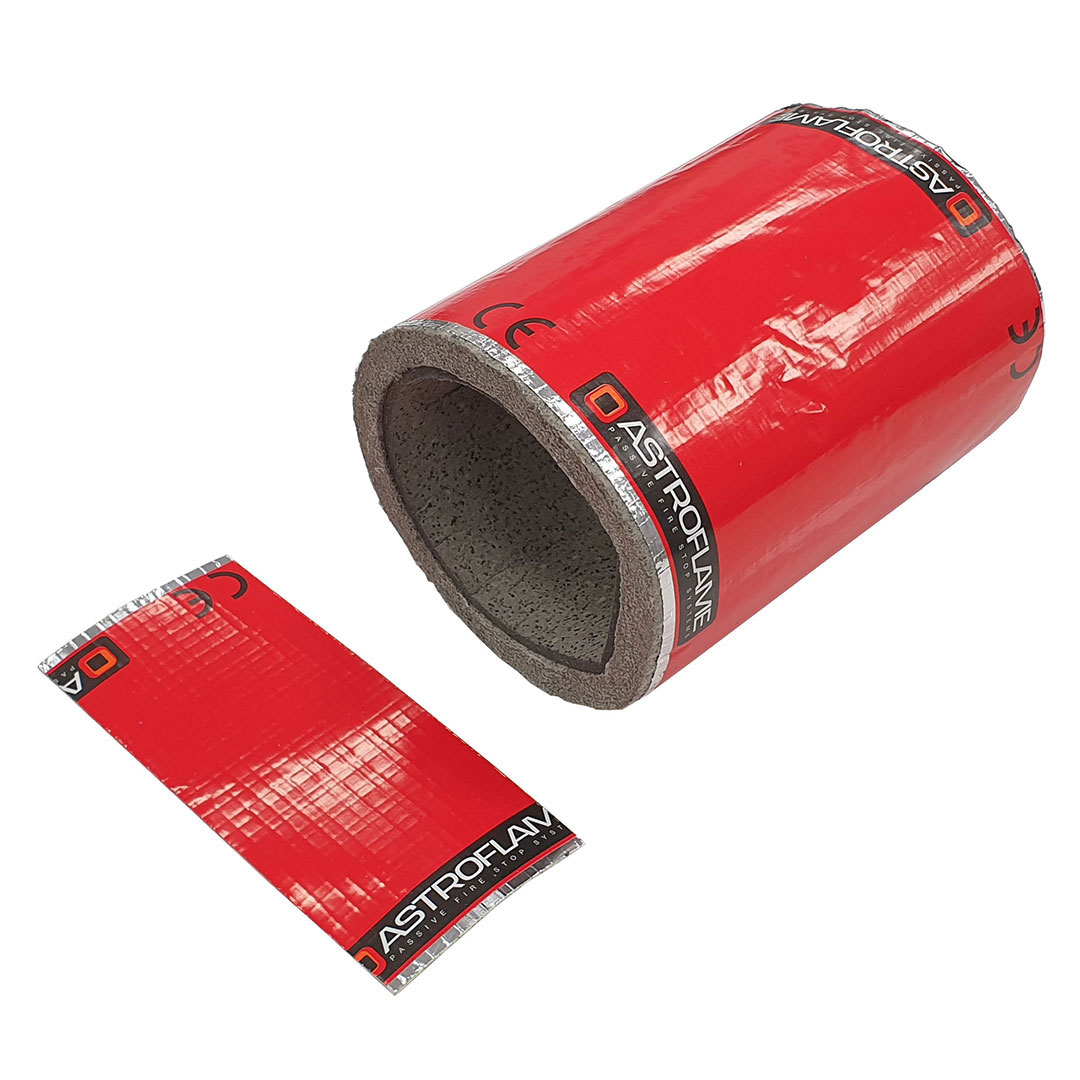

Astroflame Duct Sleeves maintain the integrity of fire rated walls penetrated by plastic ventilation ducts.

The new Low Profile Duct Sleeve is a more compact version of the original Astro DS Duct Sleeve that offers the same industry leading fire performance.

The Low Profile sleeves have been independently fire tested to BS EN 1366-3 in a full scale partition system with Uncapped/Uncapped pipe/duct end configuration as required for ventilation systems and assessed for use in series around multiple duct penetrations.

In the event of a fire the intumescent material of the duct sleeve expands and crushes the plastic ventilation duct, closing off this route to the fire for up to 120 minutes. Fire test evidence is available for use within 30, 60 and 120 minute wall constructions including a variety of single and double layer plasterboard partitions.

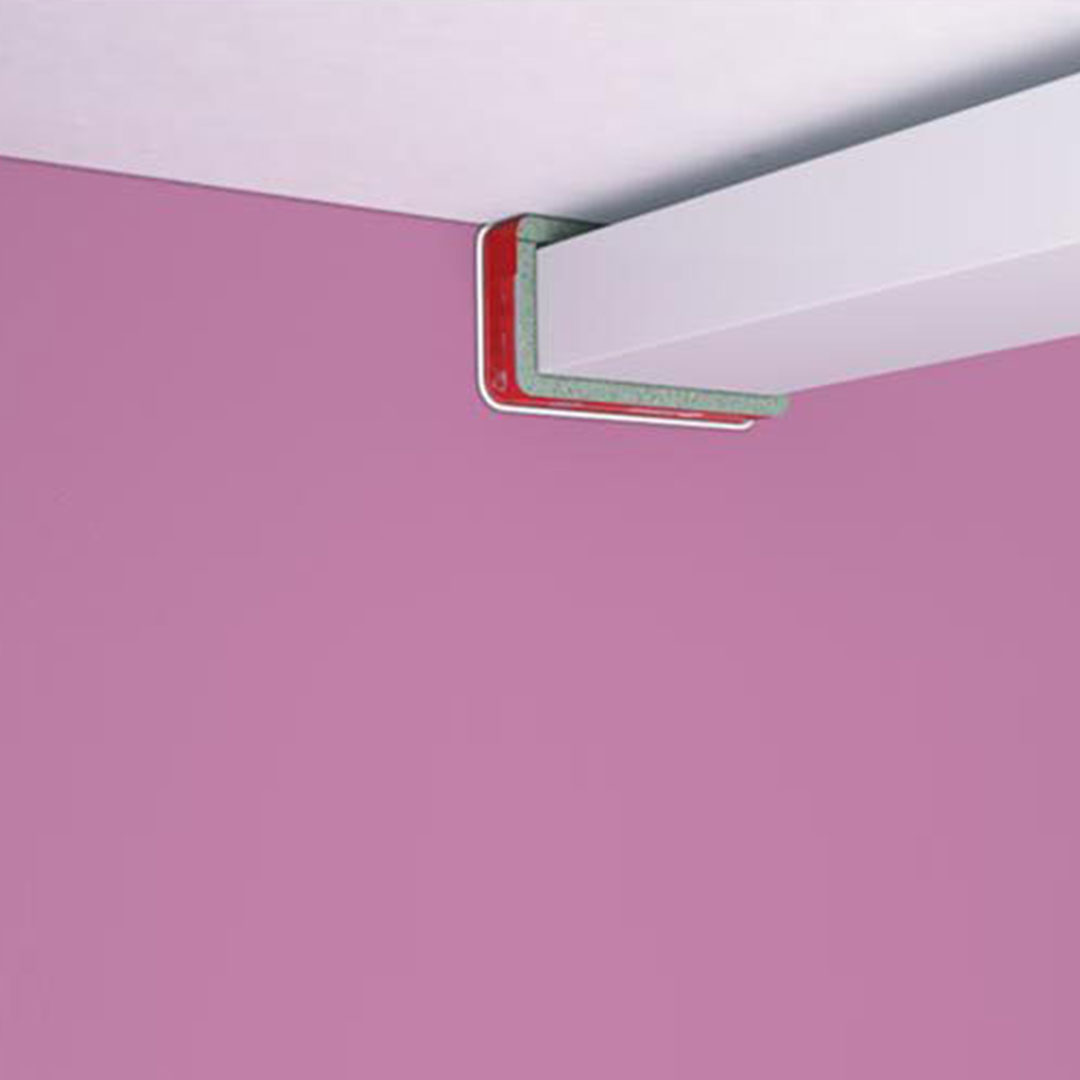

Low profile duct sleeves need no additional metal cage or sleeving, can be slit for retro fitting over ductwork and access is only required from one side. The slim dimensions (typically 10-15mm thickness) and compressible nature of the intumescent material allows tight fitting against the ceiling soffit without the need to remove the top edge.

The duct sleeves are available to fit common sizes of rectangular and circular plastic ventilation ducts.

Product Availability

Astro DS Low Profile Duct sleeves are available in the following dimensions (nominal sizes). Packed - Individually.

Product Code Description Width Height Length
AFDS110LP Astro DS Duct Sleeve Low Profile 110mm 54mm 180mm
AFDS204LP Astro DS Duct Sleeve Low Profile 204mm 60mm 180mm
AFDS22090LP Astro DS Duct Sleeve Low Profile 220mm 90mm 180mm
AFDSC100LP Astro DS Duct Sleeve Low Profile Circular N/A 103 Diam. 180mm
AFDSC125LP Astro DS Duct Sleeve Low Profile Circular N/A 127 Diam. 280mm
AFDSC150LP Astro DS Duct Sleeve Low Profile Circular N/A 155 Diam. 280mm
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 10 | Astro DS Duct Sleeve Low Profile | AFDS110LP | 110mm x 54mm x 180mm

Telephone:

Fax:

Email:

Once your order is received we will phone to confirm all details. For in-stock items orders received before 3pm (Monday-Friday) are dispatched for delivery on the following working day (Monday-Friday).

Fire Test and Assessment Reports

  • Tested up to 120 minute rating to EN 1366-3 : 2009.
  • Tested in accordance with EN 13501-1 : 2007.

Installation

For further information on installation requirements please contact the technical team on:

Telephone: +44 (0)1329 844 500

Email: sales@astroflame.com

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:

Telephone: +44 (0)1329 844 500

Email: sales@astroflame.com
