Astro PFP FR EX Mortar

Intumescent PFP FR Pipe Wraps CE Marked CE Marked  Fire Resistant Mortar

Share page:



Astro PFP FR EX Mortar Product Image
Astro PFP FR EX Mortar

Astro PFP FR EX Mortar Product Image
Astro PFP FR EX Mortar
Download any of the following data sheets:

Product Data Sheet

Safety Data Sheet

Install Video

DoP Astro PFP FR EX Mortar

CoC Astro PFP FR EX Mortar

Astro PFP FR EX Mortar TDS

Astro PFP FR EX Mortar ETA

KEY: CE Marked Documents
CE Information DoP's are Declaration of Performance
CoC's are Certificate of Constancy of Performance
TDS's are Technical Data Sheet
ETA European Technical Assessment Sheet


Product Features
  • Classified in walls and floors of concrete, brick, gypsum etc.
  • Suitable for cables, bundled cables, cable racks, cable trays, steel, copper, alupex and plastic pipes.
  • Simple to apply leaving a very smooth finish.
  • Please Note: NOT Suitable for Pizza Ovens, BBQ Bases, any types of ovens, fire places etc.
  • No priming necessary prior to application in most building material substrates however metal services in contact with the seal must be corrosion protected.
  • Suitable for most surfaces, included concrete, bricks, Leca, steel, plastic etc, but not suitable to fitting of doors or in service openings that involve movement.
  • The product is certified for use in walls but it is recommended to use PFP FR Boards for these applications.
  • Fully set within 1 hour.
  • The fire performance specification of the compound has been derived when the seal has been left to cure for 1 month.
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical example:- 25 | AFPFPEXMB | Astro PFP FR EX Mortar - Bags | 20 L

Telephone:

Fax:

Email:

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

Description
CE ETA Label Astro PFP FR EX Mortar

Astro PFP FR EX Mortar is a dry white powder consisting of inorganic compounds and perlite.

When mixed with water, the compounds form a highly thermally insulating fire sealing compound to prevent the spread of fire and smoke through openings in fire rated walls and floors, including openings formed around building service penetrations.

Astro PFP FR EX Mortar will also maintain the acoustic design performance in walls and floors. Astro PFP FR EX Mortar expands approx. 1% by hydraulic action during curing ensuring a very tight seal around the service penetrations and the surrounding opening apertures.

Astro PFP FR EX Mortar is easy to sand or drill. The compound dries to an off-white colour which may be painted.

Sound Insulation:

Description Sound Reduction
Single sided cast = 50 mm thick as linear seal Rw 64 dB
Double sided cast = 25 mm thick as linear seal Rw 64 dB
Single sided cast = 50 mm thick as large seal Rw 48 dB
Double sided cast = 25 mm thick as large seal Rw 48 dB

Astro PFP EX Mortar has been tested at BM Trada (UKAS accredited); according to EN ISO 10140-2:2010.

Resistance to Fire:

Construction Description Classification
Flexible walls comprise gypsum, masonry, aerated concrete or concrete Up to 2400 mm wide by 1200 mm high blank seal with double sided 25mm Astro PFP FR EX Mortar on 25mm cast board EI 120 (E 120)
Rigid walls comprise masonry, aerated concrete or concrete, within walls or between the head of walls and the soffit of floor slabs Up to 2400 mm wide by 1200 mm high blank seal with single sided 50mm Astro PFP FR EX Mortar on 50mm cast board EI 120 (E 180)
Up to 2400 mm wide by 1200 mm high blank seal with single sided 100mm Astro PFP FR EX Mortar EI 240 (E 240)

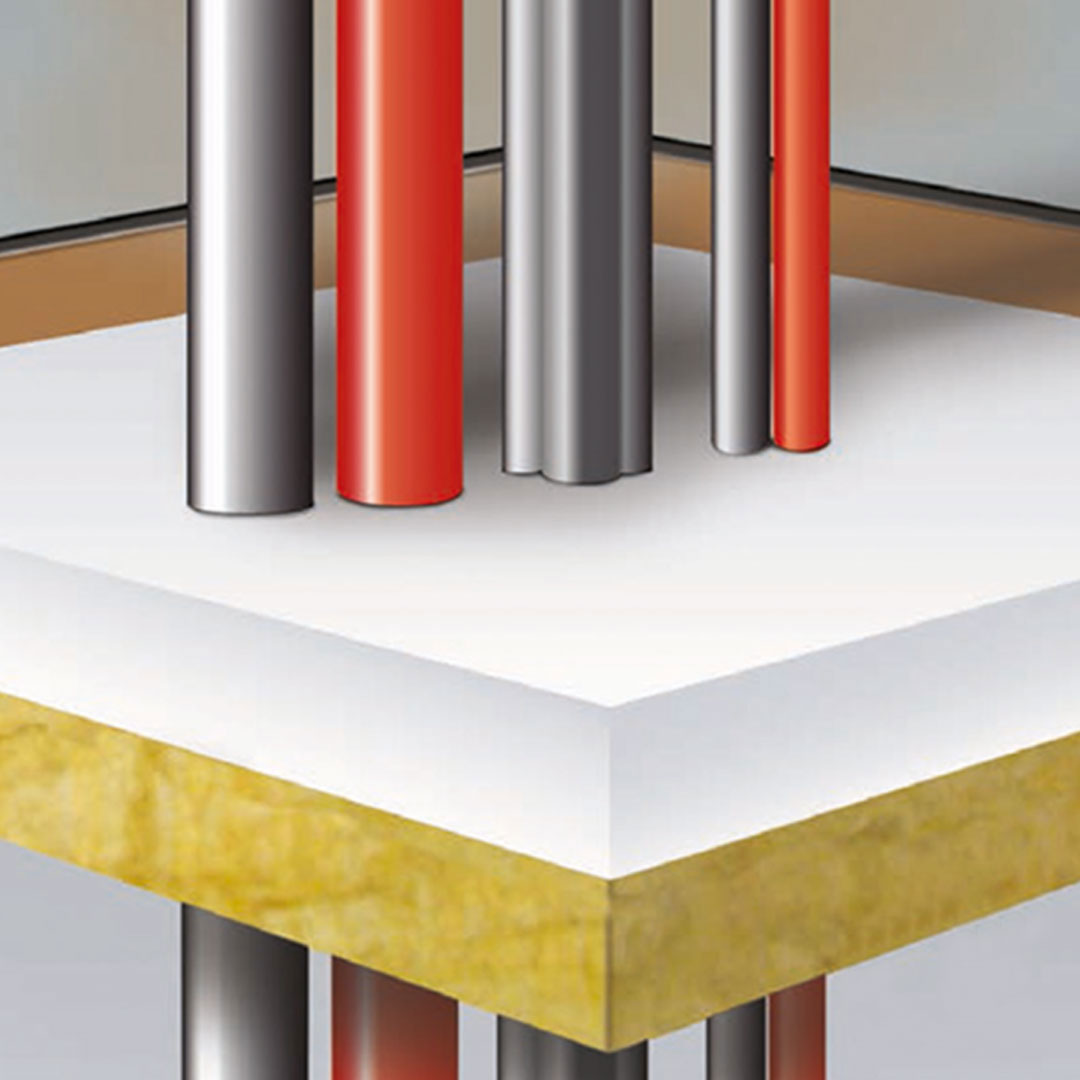

Rigid floors comprise aerated concrete or concrete within floors or between floors and walls Up to 2400 mm by 1200 mm blank seal with 50mm Astro PFP FR EX Mortar on top of 50mm cast board EI 180 (E 180)
Up to 2400 mm by 1200 mm blank seal casted with 100mm Astro PFP FR EX Mortar EI 240 (E 240)

The cast board comprise stone wool with density = 150kg/m3.
Please read the Installation Instructions before usage.

Technical Data
Condition Powder ready for mixing with water
Product consumption at 2:1 mix Approx. 3.42 bags per m2 @ 50mm depth
Approx. 6.83 bags per m2 @ 100mm depth
Dry density About 900 kg/m3 after full cure
Flash point None
Reaction to fire Class A1
Totally Hardened Up to 30 days depending on thickness and temp.
Flexibility None
Durability/service Class Z2
Thermal conduct. 0.051 W/mK
Storage 12 months stored in unopened bags or pails. Should be stored between 5 °C and 30 °C and in dry conditions. Damp and humid conditions will affect the shelf life.
Compatibility Suitable for use with most materials, but should not be used in direct contact with metals that may corrode
Limitations Should not be used in permanently damp areas or in moving joints
Classification CE-marked - Fire seal for fire rated openings and penetrations class EI 240
Colour Off white
Product Availability
Product Code Product Description Colour Size
AFPFPEXMB Astro PFP FR EX Mortar - Bags Off-White 20 L

10 L pail also available

To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
25 | AFPFPEXMB | Astro PFP FR EX Mortar - Bags | 20 L

Telephone:

Fax:

Email:

Once your order is received we will phone to confirm all details. For in-stock items orders received before 3pm (Monday-Friday) are dispatched for delivery on the following working day (Monday-Friday).

Installation

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com

Maintenance

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.

Competency

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes

Please refer to the ETA sheet for fields of application for this product. For further information on installation requirements please refer to the manufacturer of the services and the wall/floor specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall/floor specification on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
