Astro PFP FR Pipe Wrap

Intumescent PFP FR Pipe Wraps CE Marked CE Marked  Intumescent Pipe Wraps CE Marked

Share page: Share and Email to a Friend Share on Facebook Share on Twitter Share on LinkedIn Share on Pinterest



Astro X Series CE Pipe Wrap Product Image

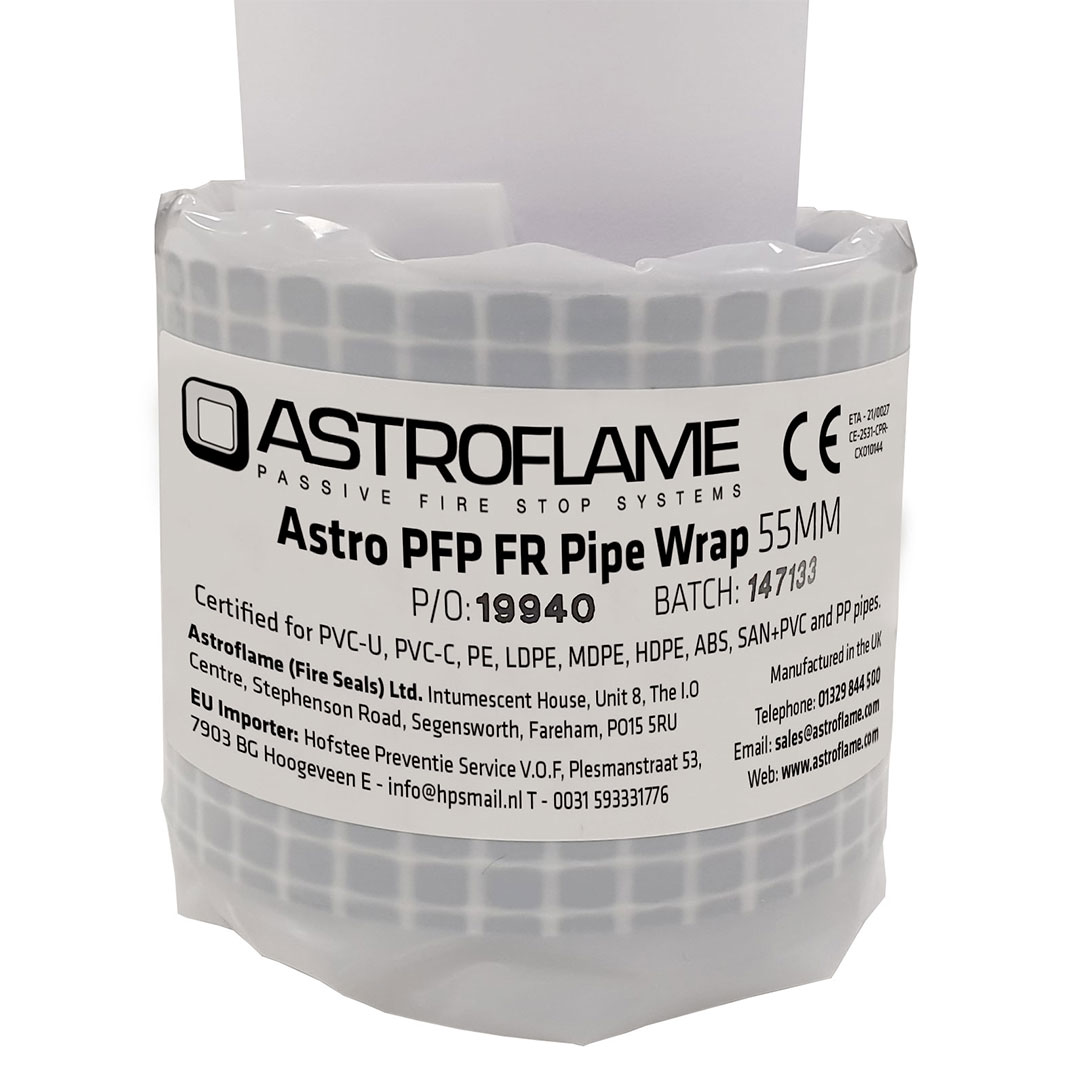

Astro PFP FR Pipe Wrap 55mm

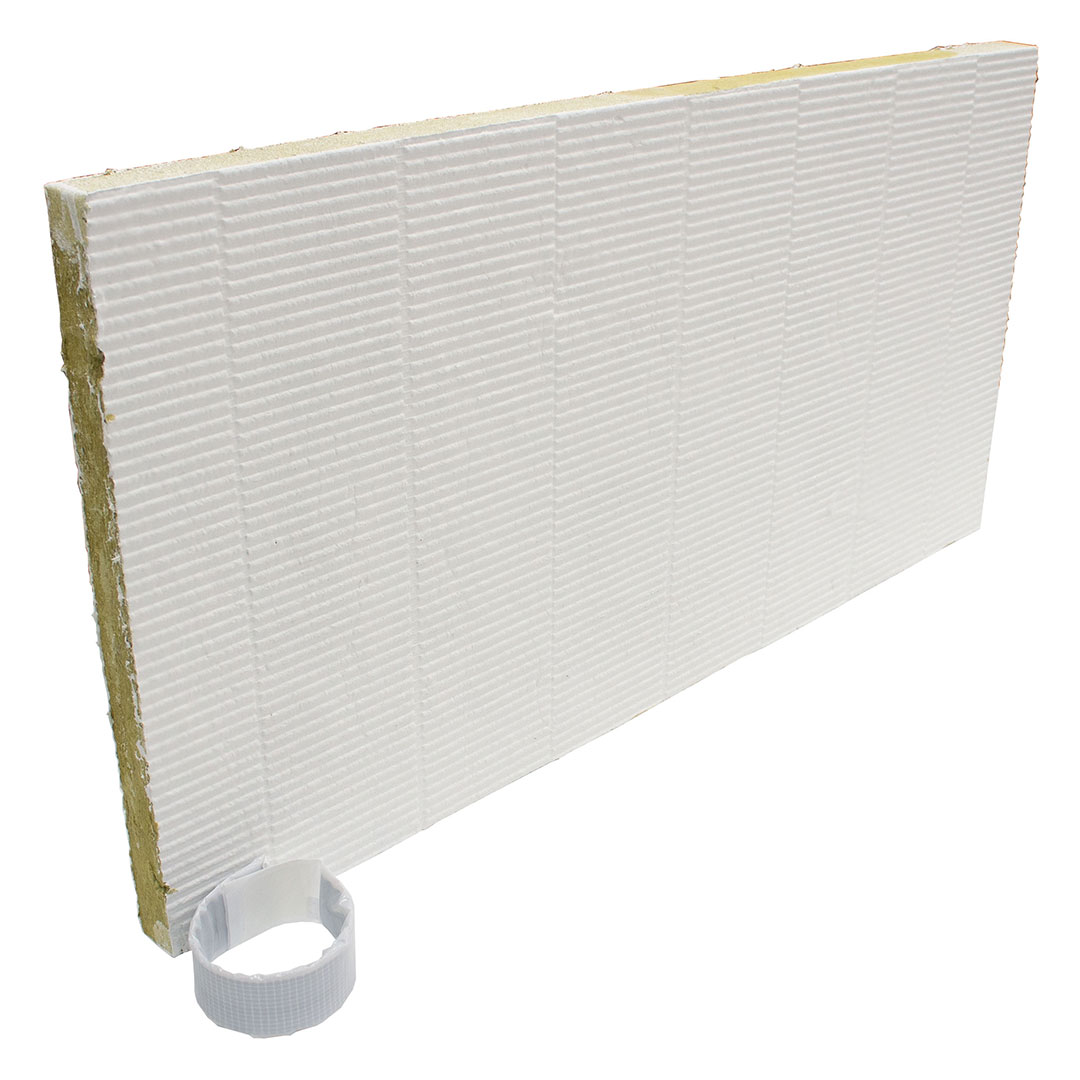

Astro PFP FR Pipe Wrap can be used on PFP Boards

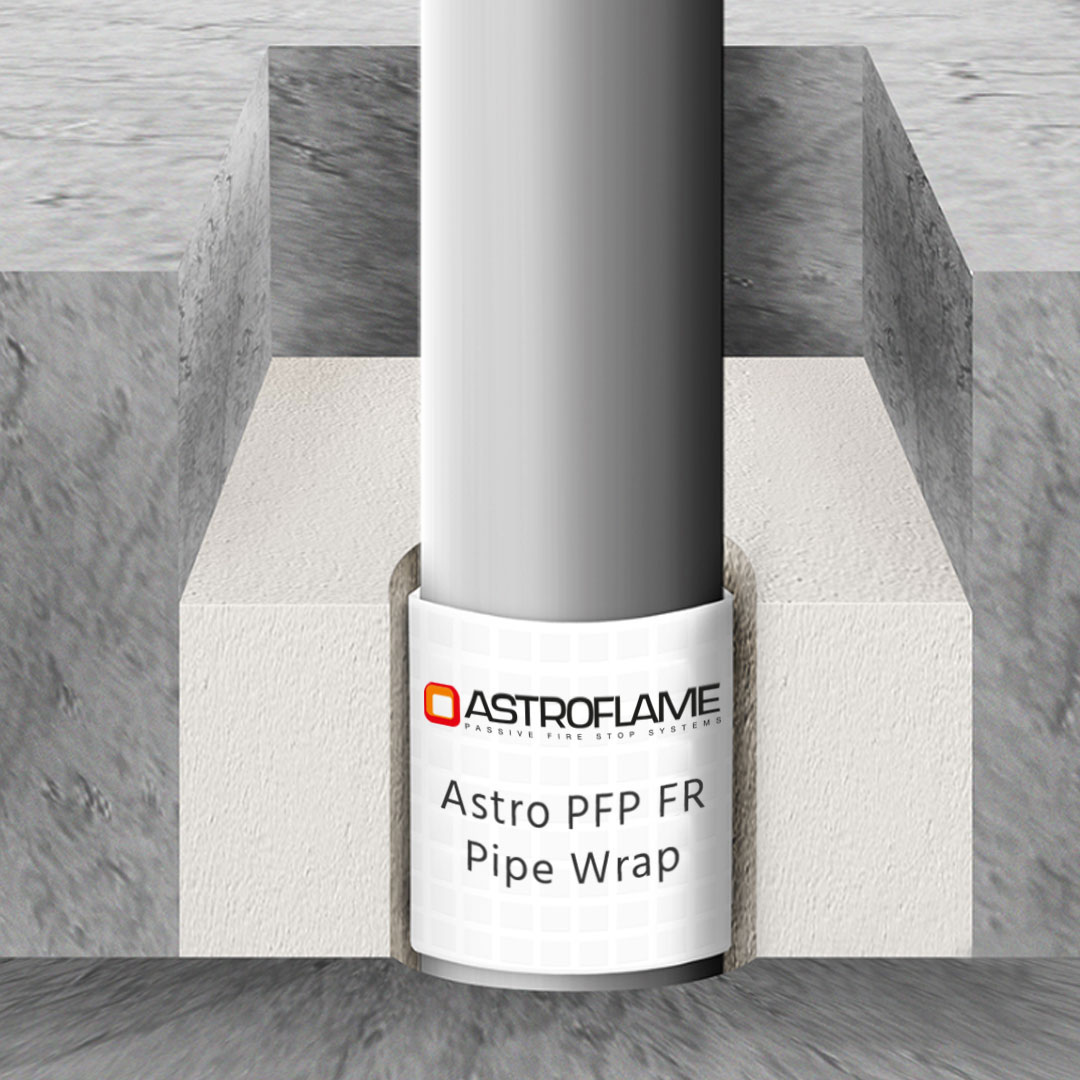

Astro PFP FR Pipe Wrap 3D Visual
closed image

Intumescent Pipe Wraps CE Marked
Intumescent Pipe Wraps CE Marked Product Image
Intumescent Pipe Wraps CE Marked On a Fire Board
Intumescent Pipe Wraps CE Marked On A Pipe
Download any of the following data sheets:

Product Data Sheet

Safety Data Sheet

Install Video

DoP Astro PFP FR Pipe Wrap

CoC Astro PFP FR Pipe Wrap

Astro PFP FR Pipe Wrap TDS
installed in the PFP-FR-Board

Astro PFP FR Pipe Wrap TDS
installed in the PFP-FR-EX-Mortar

Astro PFP FR Pipe Wrap ETA

KEY: CE Marked Documents
CE Information DoP's are Declaration of Performance
CoC's are Certificate of Constancy of Performance
TDS's are Technical Data Sheet
ETA European Technical Assessment Sheet


Product Features
  • For plastic pipe sizes from smallest pipes available to Ø315 mm with a wide range of pipe wall thicknesses.
  • For metal pipes with continuous combustible pipe insulation.
  • For plastic pipes with cables (conduits).
  • Pipe wraps comes ready made for most common diameters.
  • Fire classifications up to 240 minutes for both integrity and insulation.
  • Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes.
  • Tested and certified for U/U pipe end applications.
  • Simple to install in both Astro PFP FR Board and Astro PFP FR EX Mortar.
  • For internal use.
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical example:- 25 | AFPFPPW55 | Astro PFP FR Pipe Wrap 55mm | 55mm

Telephone:

Email:

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

Description
CE ETA Label Pipe Wraps UL

The Astro PFP FR Pipe Wrap is designed to maintain the fire resistance of fire separating walls and floors when these are breached by plastic pipes, conduits or metal pipes with continuous combustible insulation, and may be used in drywalls, masonry or concrete walls and concrete floors.

Each pipe wrap consists of a graphite based reactive intumescent strip, which reacts to heat and closes the opening left by the softening plastic pipe or pipe insulation in a fire. The pipe wrap is installed completely around the pipes or insulation and secured with the self adhesive tab. The annular space around the pipe wrap is sealed with Astro PFP FR EX Mortar or Astro PFP FR Boards.

Sizes and Intended Use:

Product Code Size Intended Use
AFPFPPW55 Astro PFP FR Pipe Wrap 55mm Plastic pipes & conduits ≤ ∅55mm
AFPFPPW82 Astro PFP FR Pipe Wrap 82mm Plastic pipes & conduits ≤ ∅82mm
AFPFPPW110 Astro PFP FR Pipe Wrap 110mm Plastic pipes & conduits ≤ ∅110mm
AFPFPPW125 Astro PFP FR Pipe Wrap 125mm Plastic pipes ≤ ∅125mm
AFPFPPW160 Astro PFP FR Pipe Wrap 160mm Plastic pipes ≤ ∅160mm
AFPFPPW200 Astro PFP FR Pipe Wrap 200mm Plastic pipes ≤ ∅200mm
AFPFPPW250 Astro PFP FR Pipe Wrap 250mm Plastic pipes ≤ ∅250mm
AFPFPPW315 Astro PFP FR Pipe Wrap 315mm Plastic pipes ≤ ∅315mm
Technical Data
Technical Approval ETAG 026-2
Durability according to ETAG 026-2 Z2 intended for use in internal conditions with humidity classes other than Z1, excluding temperatures below 0°C.
Conditioning procedure EN 13238:2010
Expansion ratio 28:1
Expansion pressure 55 N
Colour Anthracite
Graphite weight 1.3 kg/m2 per mm thickness
Graphite density 1300 kg/m3
Normal expansion time Less than 10 minutes
Minimum expansion temperature 150°C
Storage Store in temperatures between 5°C and 30°C
Life Under normal conditions; 30 years +
Product Availability
Product Code Product Description Size
AFPFPPW55 Astro PFP FR Pipe Wrap 55mm 55mm
AFPFPPW82 Astro PFP FR Pipe Wrap 82mm 82mm
AFPFPPW110 Astro PFP FR Pipe Wrap 110mm 110mm
AFPFPPW125 Astro PFP FR Pipe Wrap 125mm 125mm
AFPFPPW160 Astro PFP FR Pipe Wrap 160mm 160mm
AFPFPPW200 Astro PFP FR Pipe Wrap 200mm 200mm
AFPFPPW250 Astro PFP FR Pipe Wrap 250mm 250mm
AFPFPPW315 Astro PFP FR Pipe Wrap 315mm 315mm
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
25 | AFPFPPW55 | Astro PFP FR Pipe Wrap 55mm | 55mm

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

Installation

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com

Maintenance

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.

Competency

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:

Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
