Astro X Series CE Pipe Wrap UL
Intumescent CE & UKCA Pipe Wrap UL 25m
Share page:
Download any of the following data sheets:
KEY: CE Marked Documents
DoP's are Declaration of Performance CoC's are Certificate of Constancy of Performance
TDS's are Technical Data Sheet
ETA's are European Technical Assessment Sheet
UL Documentation are UL - EU Certificate
UKTA UK Technical Assessment Sheet
Product Features
- CE & UKCA Marked.
- UL-EU Accreditation
- Tested on a wide range of plastic pipes: PVC, PP, HDPE & PE Pipes, please refer to the test certification.
- Tested in accordance with EN 1366-3 : 2009.
- Classified in accordance with EN 13501-2.
- Supplied on a roll - cut to size on site.
- For internal use.
Description
Astro X Series CE Pipe Wrap UL is designed and tested to seal service penetration apertures containing plastic and metallic pipes, pipes with insulation, using thermoplastic composites based on graphite Intumescent technology.
Developed to provide a high volume expansion and pressure seal during a fire. The Astro X Series CE Pipe Wrap UL offers EI120 tested to EN1366-3, the maximum diameter being 200mm, the ultra thin design of Astro X Series CE Pipe Wrap UL ensuring that they can be installed in to the tightest of locations.
Astro X Series CE Pipe Wrap UL can be installed in flexible wall, rigid wall, rigid floor constructions and with Batt systems. They are compatible with polypropylene (PP), polyethylene (PE) and polyvinyl chloride (PVC) pipes. Astro X Series CE Pipe Wrap UL is tested with end capping configurations that cover U/C pipes.
Astro X Series CE Pipe Wrap UL is installed around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions, where they have been provided with apertures for the penetration of combustible pipe services.

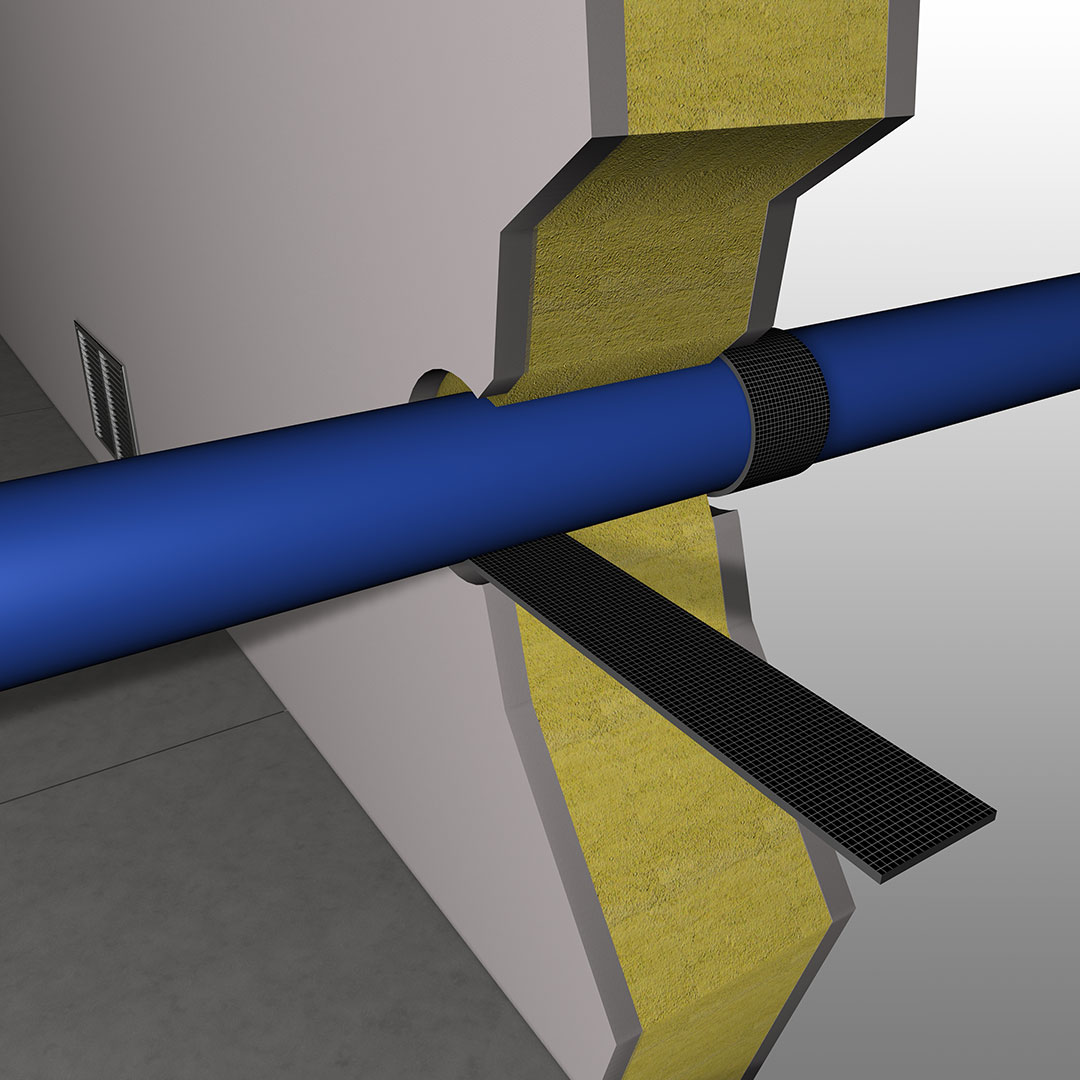

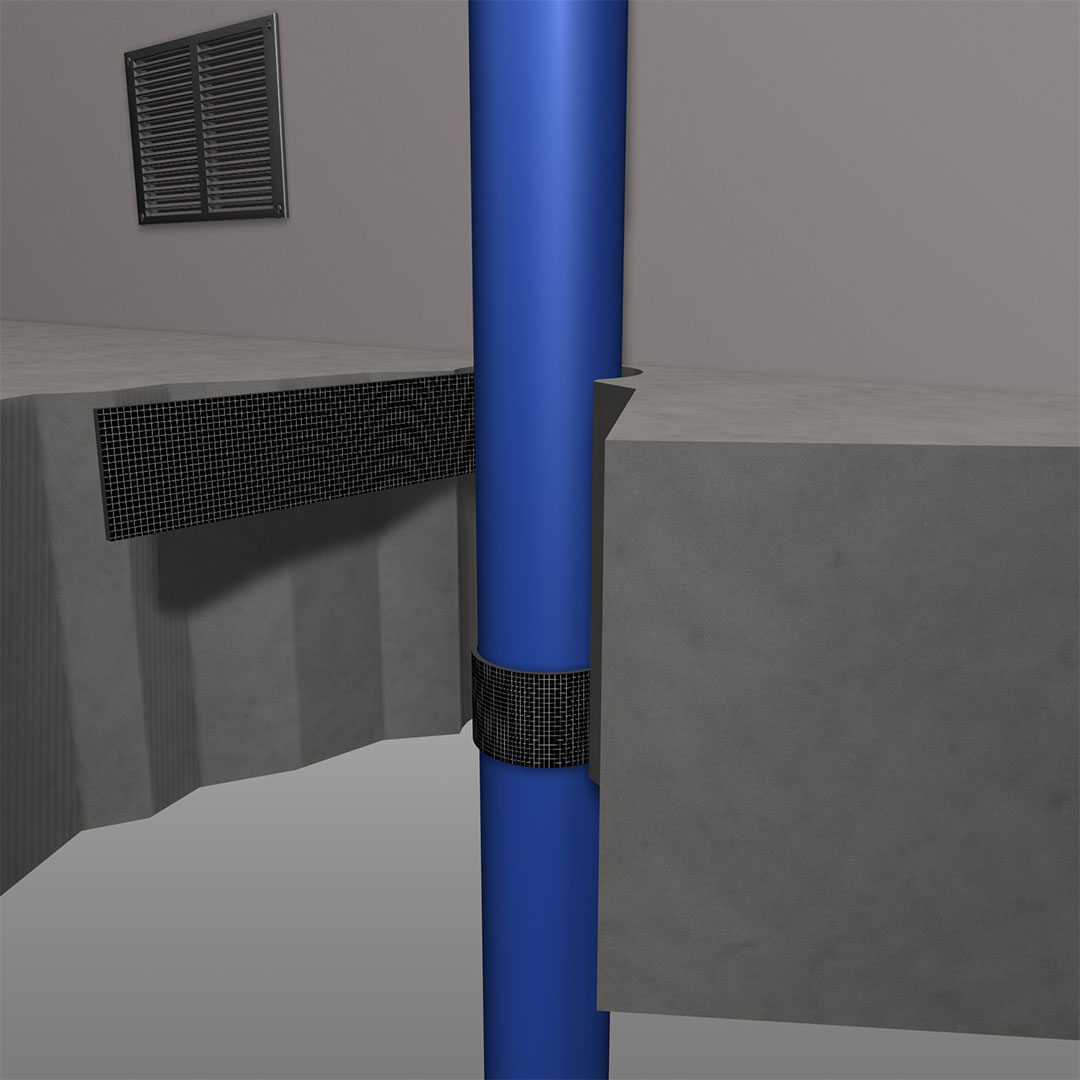

Astro X Series CE Pipe Wrap UL is installed around the pipe at the soffit and upper face of floors and both faces of walls, depending on application and by applying a number of passes to reach the required thickness.
*For specific details please refer to the test certification.
| Outer Pipe Dia | No. Wraps | Thickness |
| 32mm | 1 | 2mm |
| 40mm | 1 | 2mm |
| 55mm | 2 | 4mm |
| 63mm | 2 | 4mm |
| 75mm | 2 | 4mm |
| 82mm | 2 | 4mm |
| 90mm | 3 | 6mm |
| 110mm | 3 | 6mm |
| 125mm | 4 | 8mm |
| 160mm | 4 | 8mm |
| 200mm | 5 | 10mm |
Product Availability

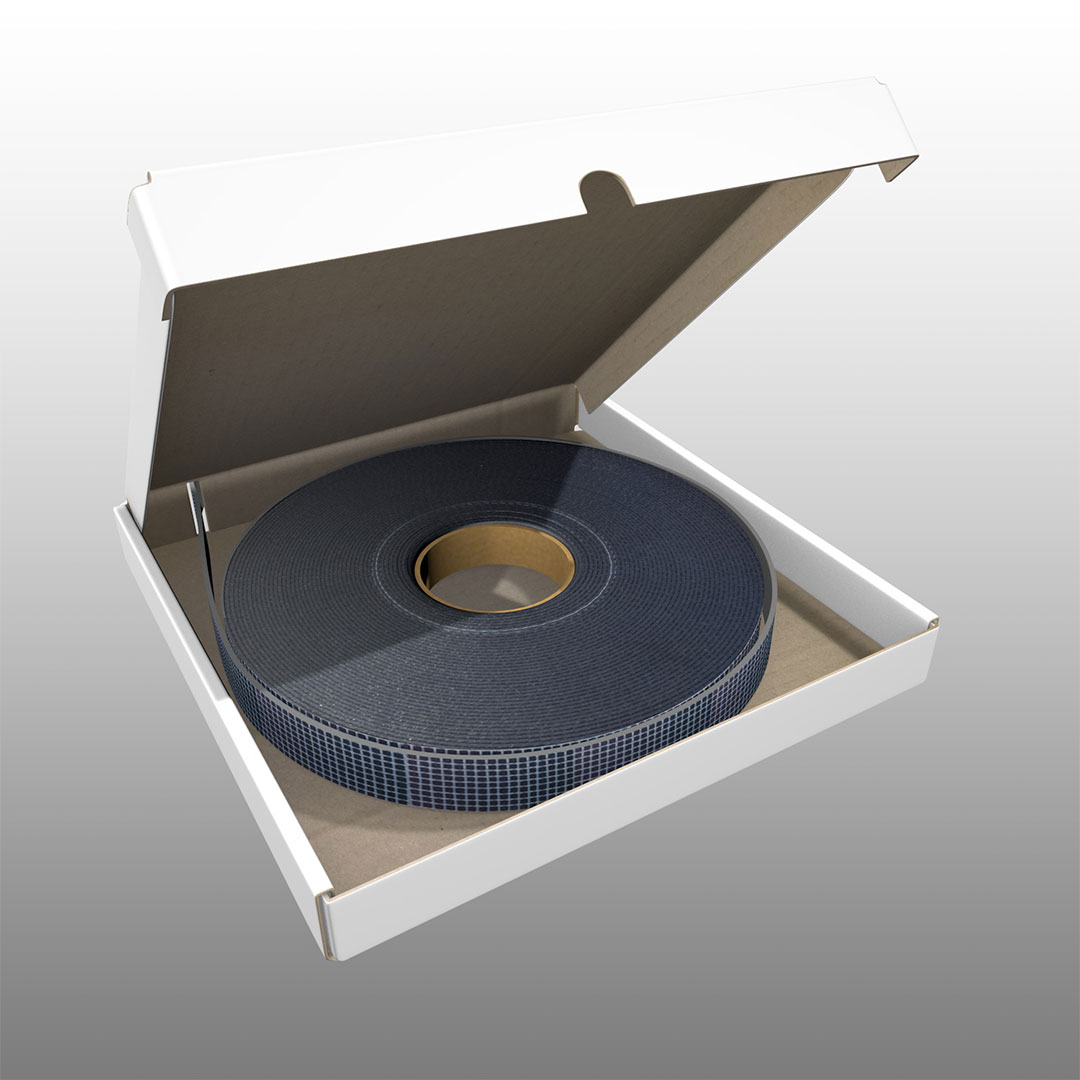

Supplied in 25m rolls.
| Product Code | Description | Size |
| AFIPWELX/CE | Astro X-Series CE Pipe Wrap UL | 25m |
Installation
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
Maintenance
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.
Competency
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Additional Notes
Please refer to the ETA/UKCA/UL-EU sheet for fields of application for this product. For further information on installation requirements please refer to the pipe manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
Health and Safety
The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
