Astro X Series CE Pipe Wrap
Intumescent CE & UKCA Marked Pipe Wrap
Share page:
Download any of the following data sheets:
KEY: CE Marked Documents
DoP's are Declaration of Performance CoC's are Certificate of Constancy of Performance
TDS's are Technical Data Sheet
ETA's are European Technical Assessment Sheet
UL Documentation are UL - EU Certificate
UKTA UK Technical Assessment Sheet
Product Features
- CE, UKCA Marked and UL-EU Accreditation.
- Fire Resistance Testing to EN 1366-3 : 2009.
- The pipes tested include PVC, PP, HDPE and PE, please refer to the test certification.
- Fire resistance testing through flexible wall and rigid floors and walls.
- Resistance to fire classification EN 13501-2.
- For internal use.
Description
Astro X Series CE Pipe Wrap are designed and tested to seal service penetration apertures containing plastic pipes using thermoplastic composites based on graphite intumescent technology.
Developed to provide a high volume expansion and pressure seal during a fire. The Astro X Series CE Pipe Wrap offers EI120 tested to EN1366-3, the maximum diameter being 200mm, the ultra thin design of Astro X Series CE Pipe Wrap ensuring that they can be installed in to the tightest of locations.
Astro X Series CE Pipe Wrap can be installed in flexible wall, rigid wall, rigid floor constructions and with Batt systems. They are compatible with polypropylene(PP), polyethylene (PE) and polyvinylchloride (PVC) pipes.
Astro X Series CE Pipe Wrap is used around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions, where they have been provided with apertures for the penetration of combustible pipe services.

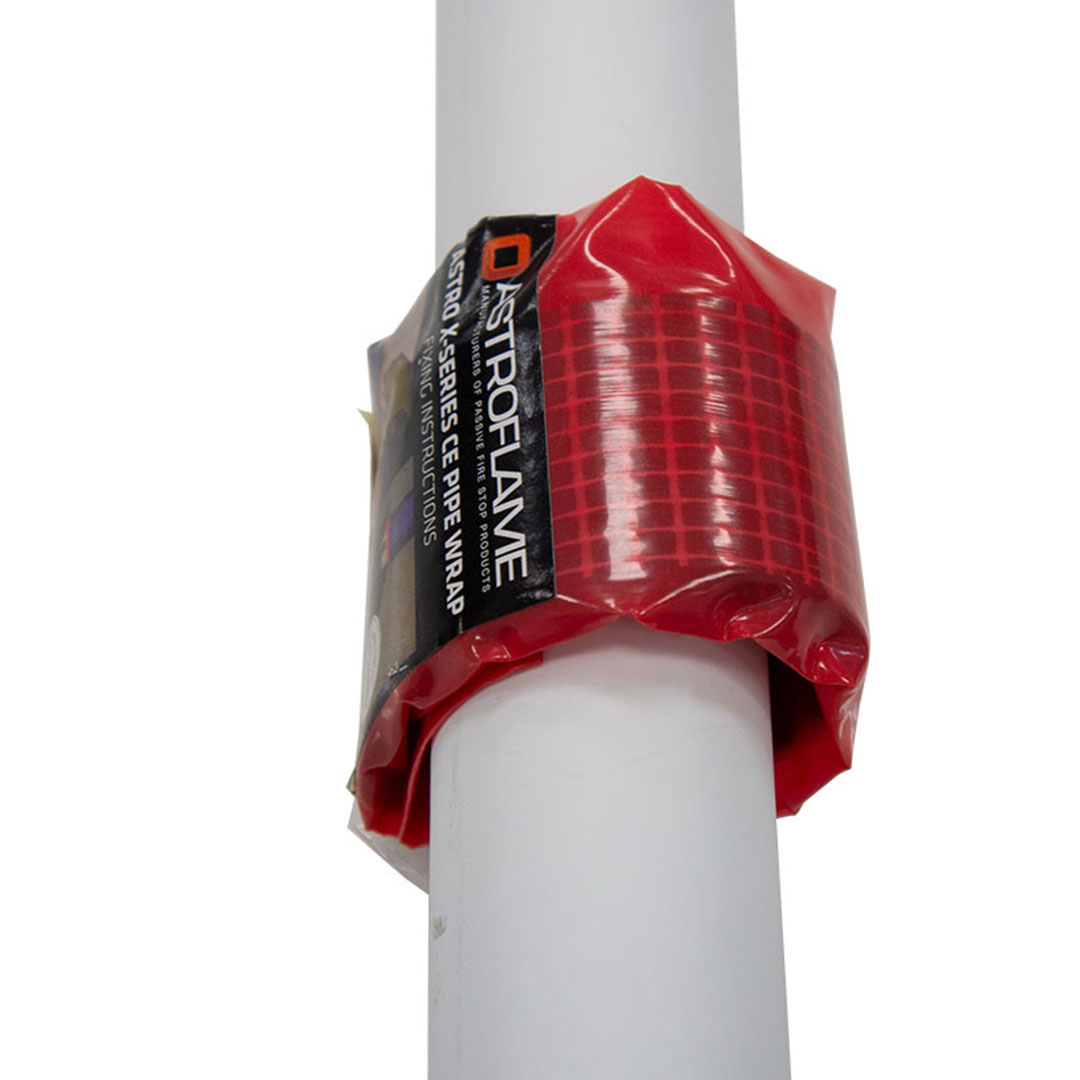

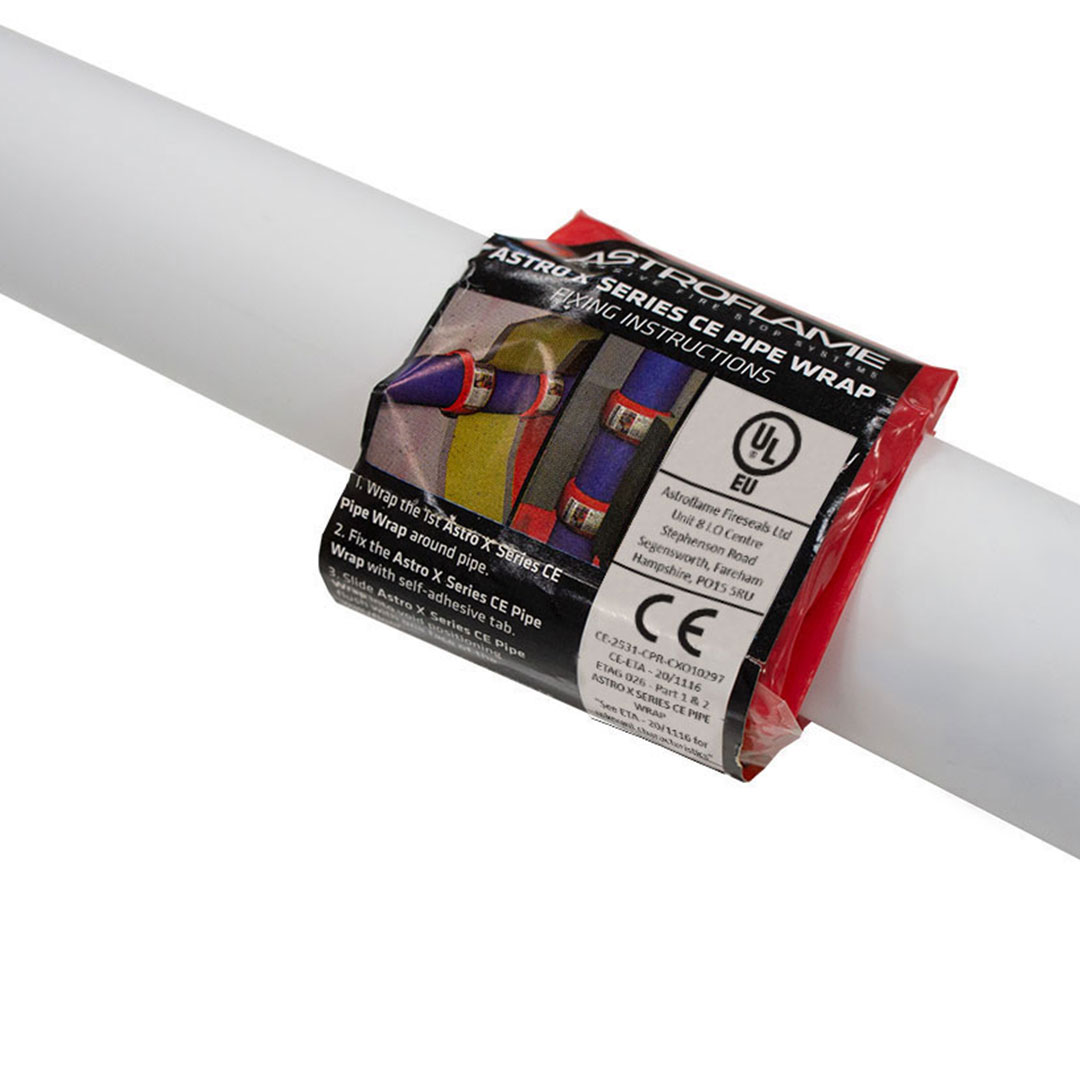

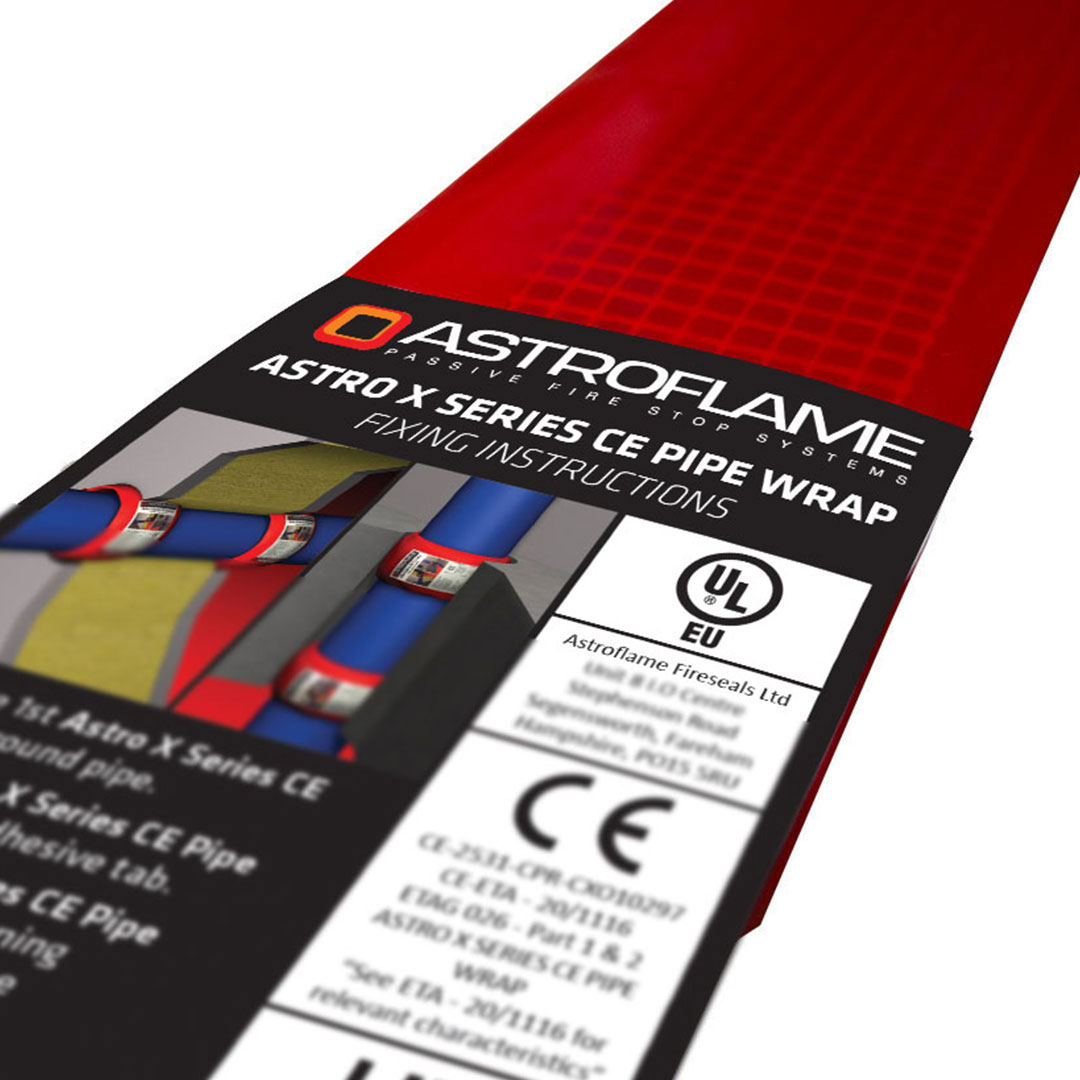

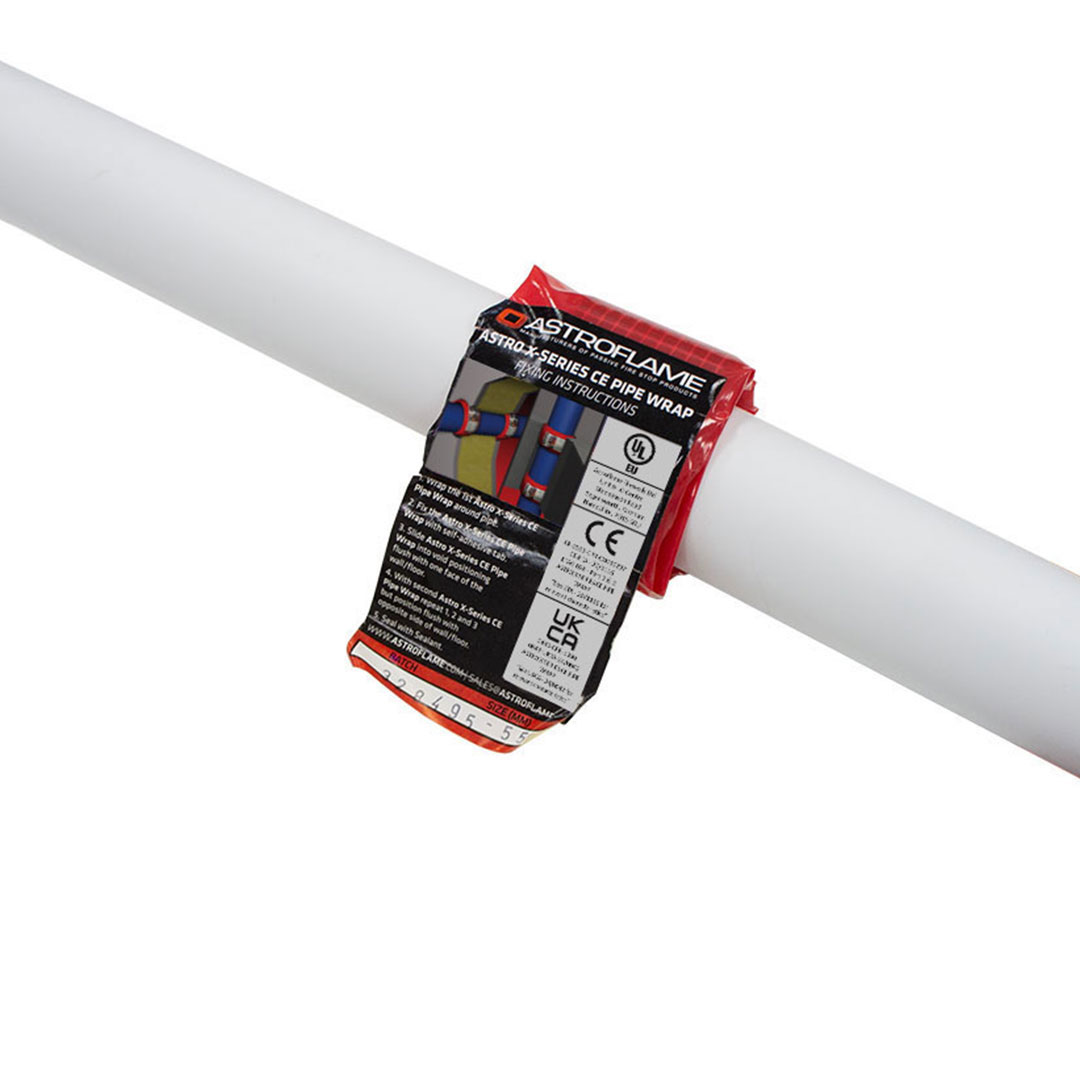

Astro X Series CE Pipe Wrap include an intumescent component incorporated into a lightweight PVC carrier bag to close any gaps and joints and provide a closure of combustible pipes when heated and to prevent the passage of fire.
*For specific details please refer to the test certification.
Product Availability
Astroflame X Series CE Pipe Wraps are available in standard sizes, to suit eg. 55, 82, 110, and 160mm diameter pipes, and also intermediate and larger sizes.
| Outer Pipe Dia | No. Wraps | Thickness |
| AFIPW32X/CE | Astro X Series CE Pipe Wrap 32mm | 32mm |
| AFIPW40X/CE | Astro X Series CE Pipe Wrap 40mm | 40mm |
| AFIPW55X/CE | Astro X Series CE Pipe Wrap 55mm | 55mm |
| AFIPW63X/CE | Astro X Series CE Pipe Wrap 63mm | 63mm |
| AFIPW75X/CE | Astro X Series CE Pipe Wrap 75mm | 75mm |
| AFIPW82X/CE | Astro X Series CE Pipe Wrap 82mm | 82mm |
| AFIPW90X/CE | Astro X Series CE Pipe Wrap 90mm | 90mm |
| AFIPW110X/CE | Astro X Series CE Pipe Wrap 110mm | 110mm |
| AFIPW125X/CE | Astro X Series CE Pipe Wrap 125mm | 125mm |
| AFIPW140X/CE | Astro X Series CE Pipe Wrap 140mm | 140mm |
| AFIPW160X/CE | Astro X Series CE Pipe Wrap 160mm | 160mm |
| AFIPW200X/CE | Astro X Series CE Pipe Wrap 200mm | 200mm |
Installation
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
Maintenance
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.
Competency
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Additional Notes
Please refer to the ETA/UKCA/UL-EU sheet for fields of application for this product. For further information on installation requirements please refer to the pipe manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
Health and Safety
The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:
Telephone: +44 (0)1329 844 500 Email: sales@astroflame.com
