Astro Thermal Fire PS

Astro Thermal Fire PS CE Marked  Thermal Fire Pipe Sleeve

Share page:



Astro Thermal Fire PS Product Image
Astro Thermal Fire PS
Thermal Fire PS
Astro Thermal Fire PS Product
Astro Thermal Fire PS

Thermal Fire Pipe Sleeve
Thermal Fire Pipe Sleeve Product Image
Fire Pipe Sleeve
Fire Sleeves

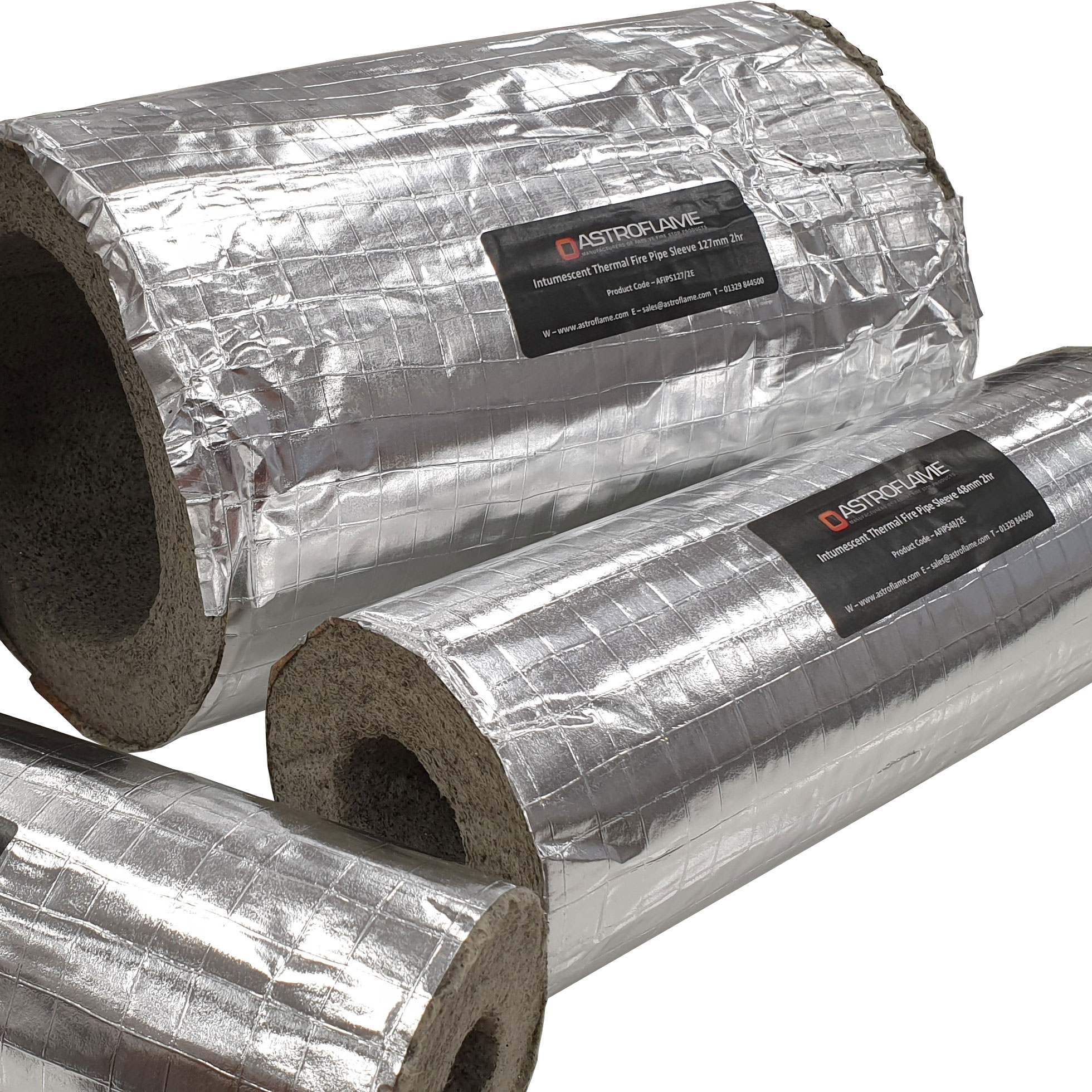

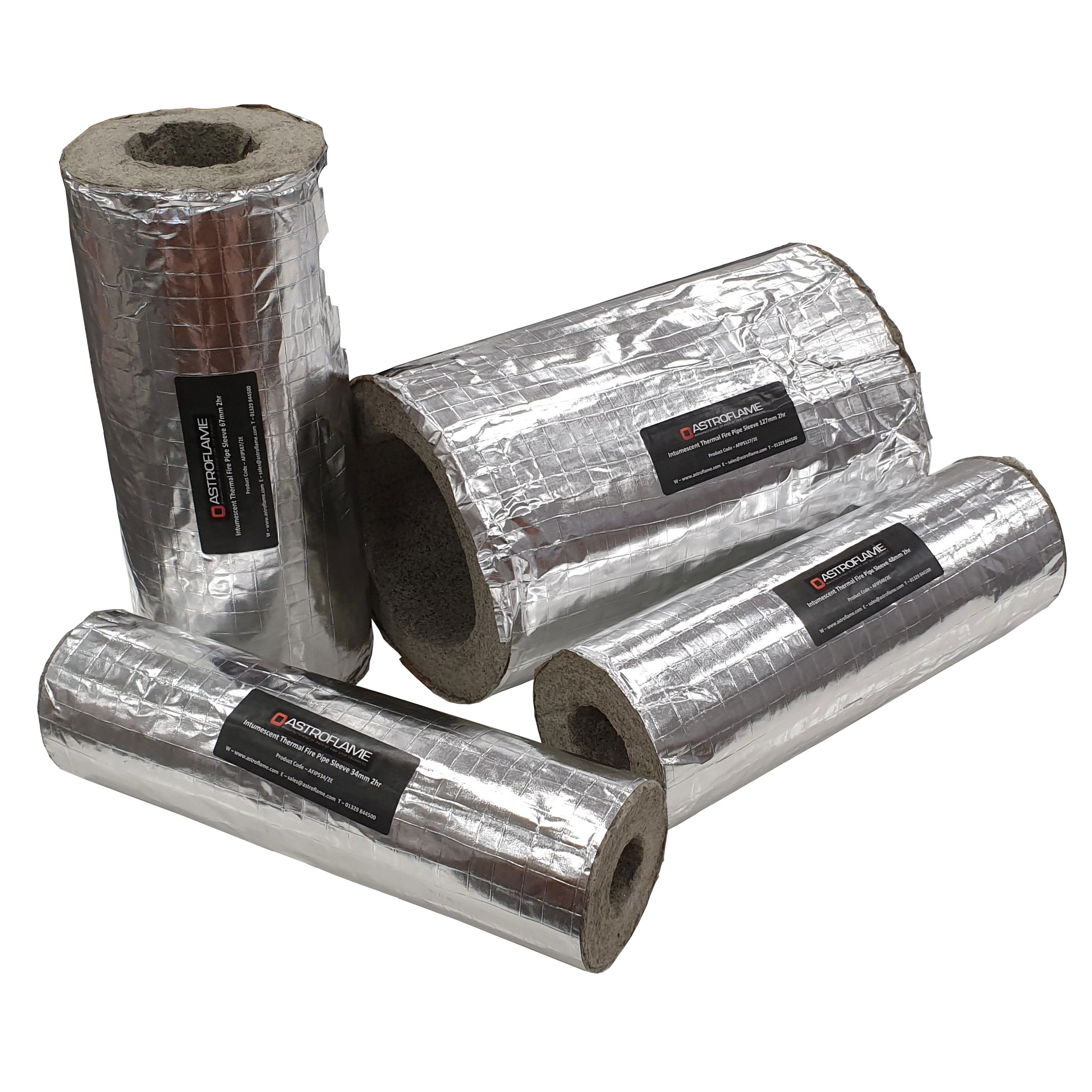

Astro Thermal Fire Pipe Sleeve
Download any of the following data sheets:

Product Data Sheet

Safety Data Sheet

Install Video On A Plaster Wall

Install Video On A Solid Wall

DoP Astro Thermal Fire PS

CoC Astro Thermal Fire PS

Astro Thermal Fire PS ETA

KEY: CE Marked Documents
CE Information DoP's are Declaration of Performance
CoC's are Certificate of Constancy of Performance
ETA's are European Technical Assessment Sheet


Product Features
  • CE Marked.
  • Suitable for fire protecting a wide range of plastic and metal pipes.
  • Tested to BS476: Part 20.
  • Tested to BS EN 1366-3.
  • Up to 2 Hours Fire Rating.
  • Acoustic Tested to BSEN ISO 140-3 and BSEN ISO 717.
  • Maintains thermal insulation for the pipe.
  • For use through a wide range of fire partition walls and floors.
  • Allows for thermal movement of pipe.
  • EN13501-1.
  • No additional metal sleeving or lining out of the partition aperture required.
  • Cost effective, can be cut to length
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
Typical wording - 10 | Astro Thermal Fire PS | AFIPS17/2E | 17mm

Telephone:

Fax:

Email:

Once your order is received we will phone to confirm all details. For in-stock items orders received before 3pm (Monday-Friday) are dispatched for delivery on the following working day (Monday-Friday).

Description
CE ETA Label Pipe Wraps UL

A high percentage of the steel, copper and plastic pipes found in commercial and domestic buildings will penetrate through fire rated constructions such as ceilings, floors and walls. Once a hole is made in a fire rated construction for the passage of pipes or services the integrity of the compartment is compromised.

To solve this problem Astroflame have developed Astro Thermal Fire Pipe Sleeve, which reinstates the fire rating of the construction and prevents fire spreading from one compartment to another. It also protects copper pipes from cement erosion.

The sleeve is a cost effective product for the fire stopping of pipe penetrations, e.g. plumbing pipe and metallic pipes, whilst maintaining similar thermal and acoustic properties as standard mineral fibre insulation. These properties ensure compliance to water bye laws and building regulations for cold and hot water pipes and heating systems.

In a fire situation the sleeve expands to fill the available space between the pipe and the penetration. In the case of plastic pipes the sleeve will crush and close off the pipe forming a solid char and preventing the passage of fire and smoke to the adjacent compartment.

Tested in Plasterboard Partition, Mineral Fibre Batt, Solid Walls and Floors.

Testing

Tested on the following pipe sizes to BS 476 Part 20 and BS EN 1366-3 for up to 2 hours.

BS 476 part 20
COPPER Pipe Size 12mm - 160mm 120 mins
STAINLESS STEEL Pipe Size 15mm - 160mm 120 mins
MILD STEEL Pipe Size 15mm - 165mm 120 mins
CAST IRON Pipe Size 15mm- 160mm 120 mins
PVC Pipe Size 55mm- 110mm 120 mins
PVC Pipe Size 160mm 90 mins
POLYBUTYLENE Pipe Size 12mm - 28mm 120 mins
HDPE Pipe Size 15mm - 160mm 120 mins

EN 1366-3
METAL Pipe Size 15mm - 158mm EI 120 Wall
METAL Pipe Size 159mm E120 EI30 Wall
PVC Pipe Size 43mm - 160mm EI 120 min wall and floor
HDPE Pipe Size 40mm - 110mm 120 min wall and floor
HDPE Pipe Size 160mm EI 90 wall / EI 120 floor

All sleeves have been tested with a 25mm nominal wall thickness. Sleeves have been tested cut flush to the wall for metal pipes only and floor for metal and plastic pipes. Sleeves have also been tested in walls, for plastic pipes, leaving 25mm exposed for connection to standard pipe insulation.

The sleeve is simple to install, easy to cut and one sleeve can replace two collars. For metal pipes the sleeve may also be fitted flush to the wall for a clean line solution.

Pipe Material Diameter Blockwork Wall Solid Floor Mineral batt Plasterboard Wall
COPPER Pipe Size
15 - 160mm


CAST IRON Pipe Size
15 - 160mm
MILD STEEL Pipe Size
15 - 160mm
STAINLESS STEEL Pipe Size
15 - 160mm
POLYBUTYLENE Pipe Size
12mm
POLYBUTYLENE Pipe Size
28mm
PVC Pipe Size
55 - 110mm
PVC Pipe Size
160mm
PVC-U Pipe Size
15 - 160mm
HDPE Pipe Size
15 - 160mm
•* •*
* HDPE 160mm limited to EI90
For specific details of approved pipe materials, pipe thickness and substrates check with Astroflame.
Product Availability

Thermal Pipe Sleeve Length 300mm. Wall thickness 27mm.

Product Code Description Size
AFIPS17/2E Astro Thermal Fire Pipe Sleeve 17mm 17mm
AFIPS21/2E Astro Thermal Fire Pipe Sleeve 21mm 21mm
AFIPS27/2E Astro Thermal Fire Pipe Sleeve 27mm 27mm
AFIPS34/2E Astro Thermal Fire Pipe Sleeve 34mm 34mm
AFIPS42/2E Astro Thermal Fire Pipe Sleeve 42mm 42mm
AFIPS48/2E Astro Thermal Fire Pipe Sleeve 48mm 48mm
AFIPS54/2E Astro Thermal Fire Pipe Sleeve 54mm 54mm
AFIPS60/2E Astro Thermal Fire Pipe Sleeve 60mm 60mm
AFIPS67/2E Astro Thermal Fire Pipe Sleeve 67mm 67mm
AFIPS76/2E Astro Thermal Fire Pipe Sleeve 76mm 76mm
AFIPS80/2E Astro Thermal Fire Pipe Sleeve 80mm 80mm
AFIPS89/2E Astro Thermal Fire Pipe Sleeve 89mm 89mm
AFIPS102/2E Astro Thermal Fire Pipe Sleeve 102mm 102mm
AFIPS108/2E Astro Thermal Fire Pipe Sleeve 108mm 108mm
AFIPS114/2E Astro Thermal Fire Pipe Sleeve 114mm 114mm
AFIPS127/2E Astro Thermal Fire Pipe Sleeve 127mm 127mm
AFIPS140/2E Astro Thermal Fire Pipe Sleeve 140mm 140mm
AFIPS159/2E Astro Thermal Fire Pipe Sleeve 159mm 159mm
AFIPS169/2E Astro Thermal Fire Pipe Sleeve 169mm 169mm
To Order & Specify

Please contact us and quote the following information:
Please quote - Quantity | Trade name | Product Ref | Size
10 | Astro Thermal Fire PS | AFIPS17/2E | 17mm

Telephone:

Fax:

Email:

Once your order is received we will phone to confirm all details. For in-stock items orders received before 3pm (Monday-Friday) are dispatched for delivery on the following working day (Monday-Friday).

Fire Test and Assessment Reports

  • BS476 part 20/22 2 hour rated at Chiltern International Fire 132 minutes integrity and insulation.
  • BS EN 1366-3.
  • Acoustically Tested in plasterboard to BS EN ISO 140-3 and BS EN ISO 717:1977.

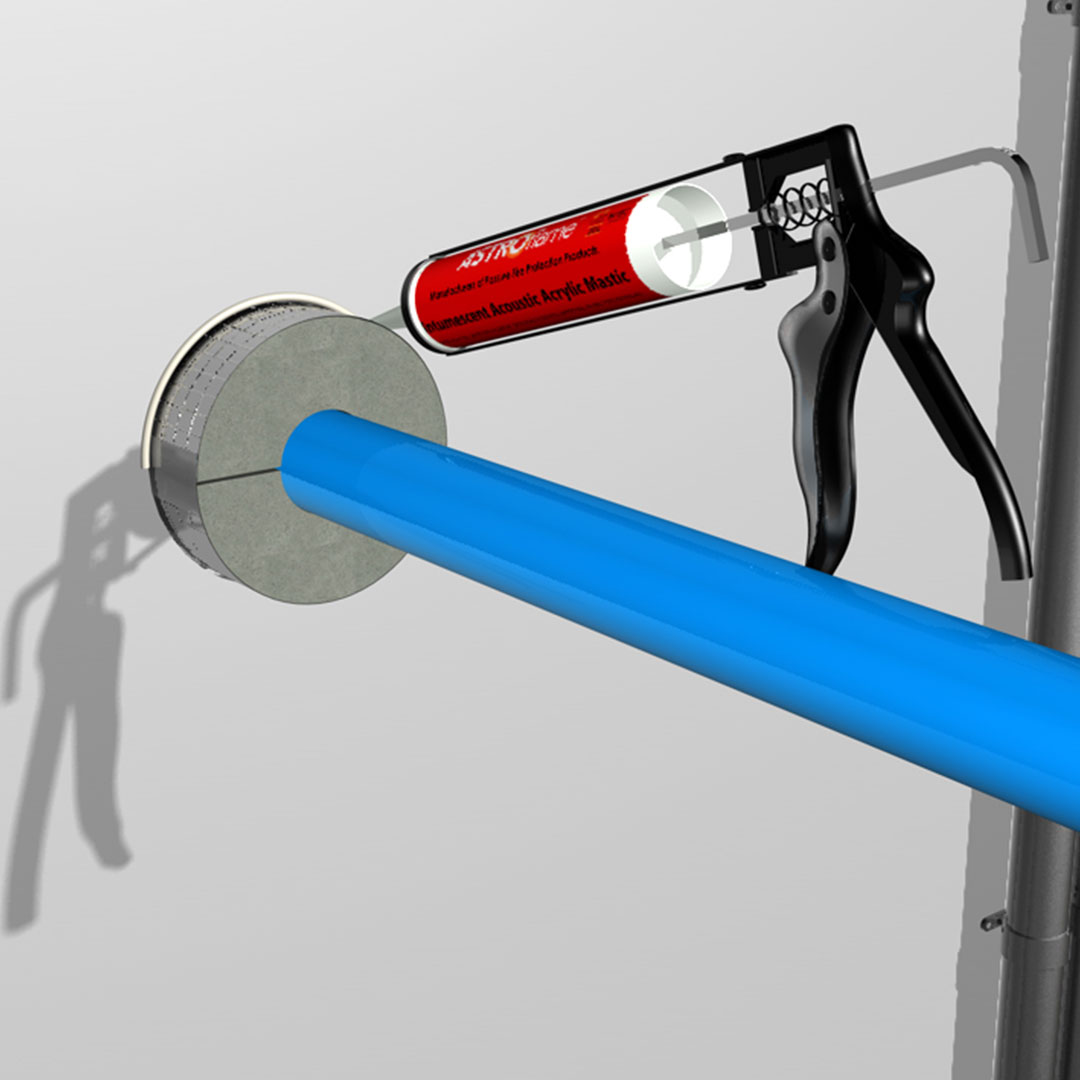

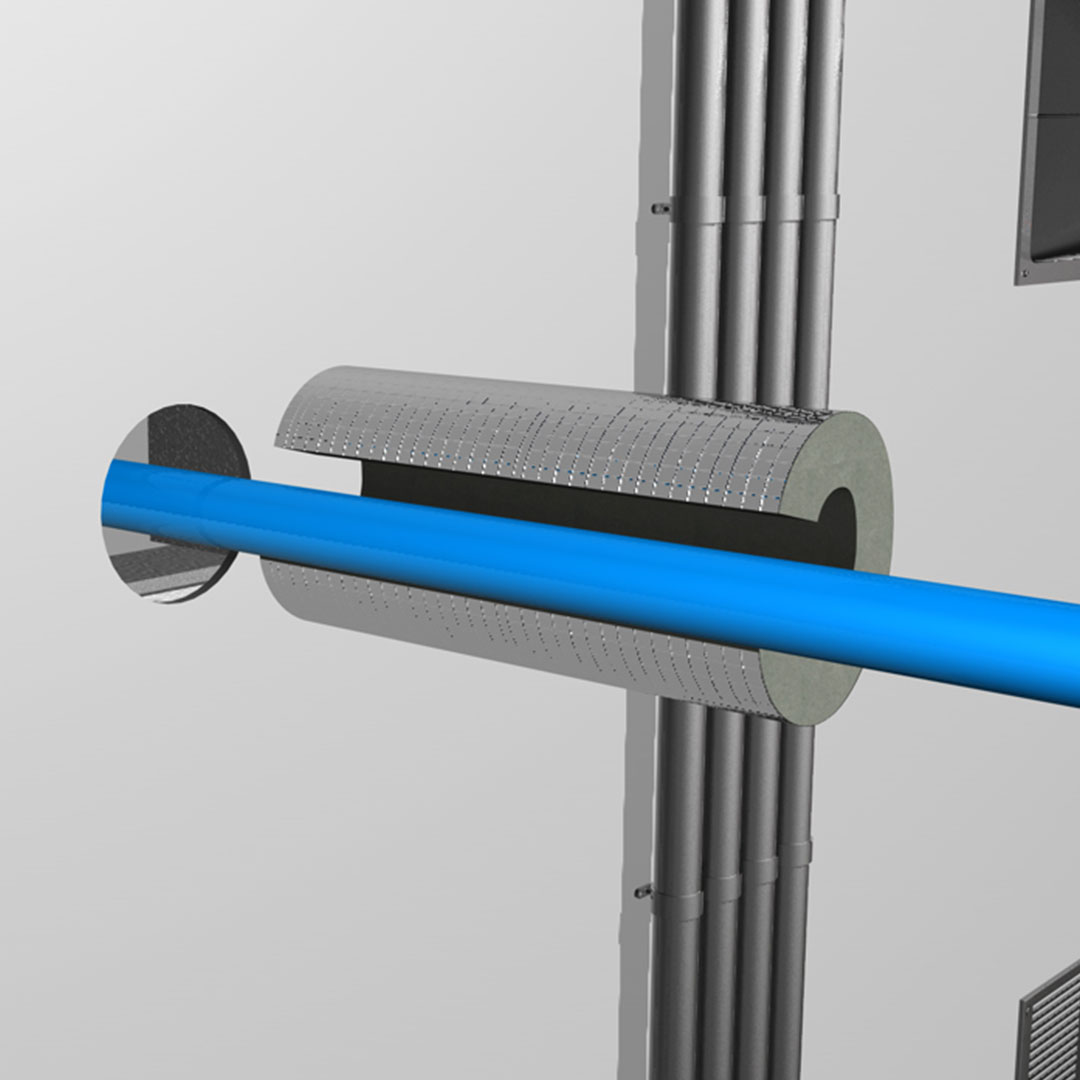

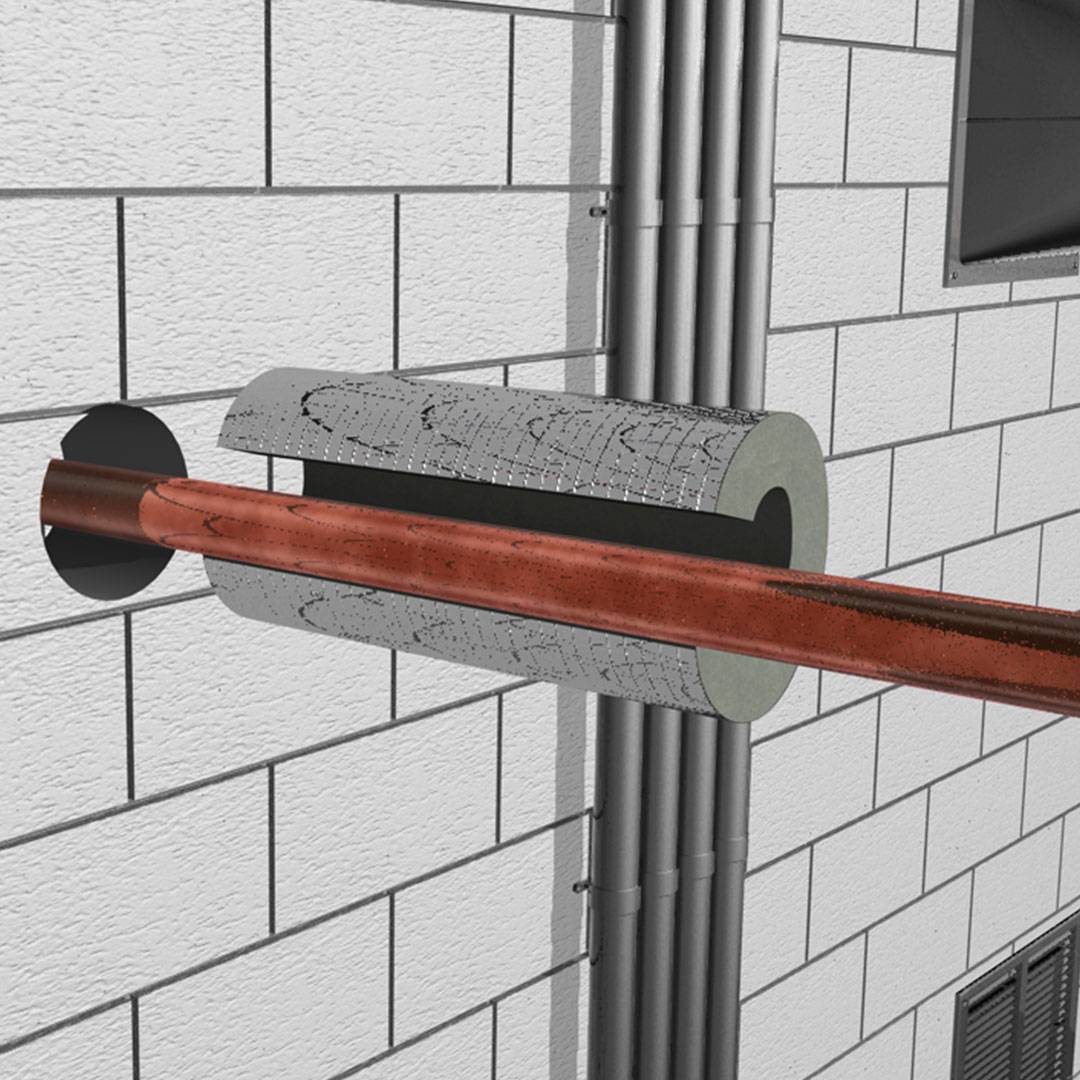

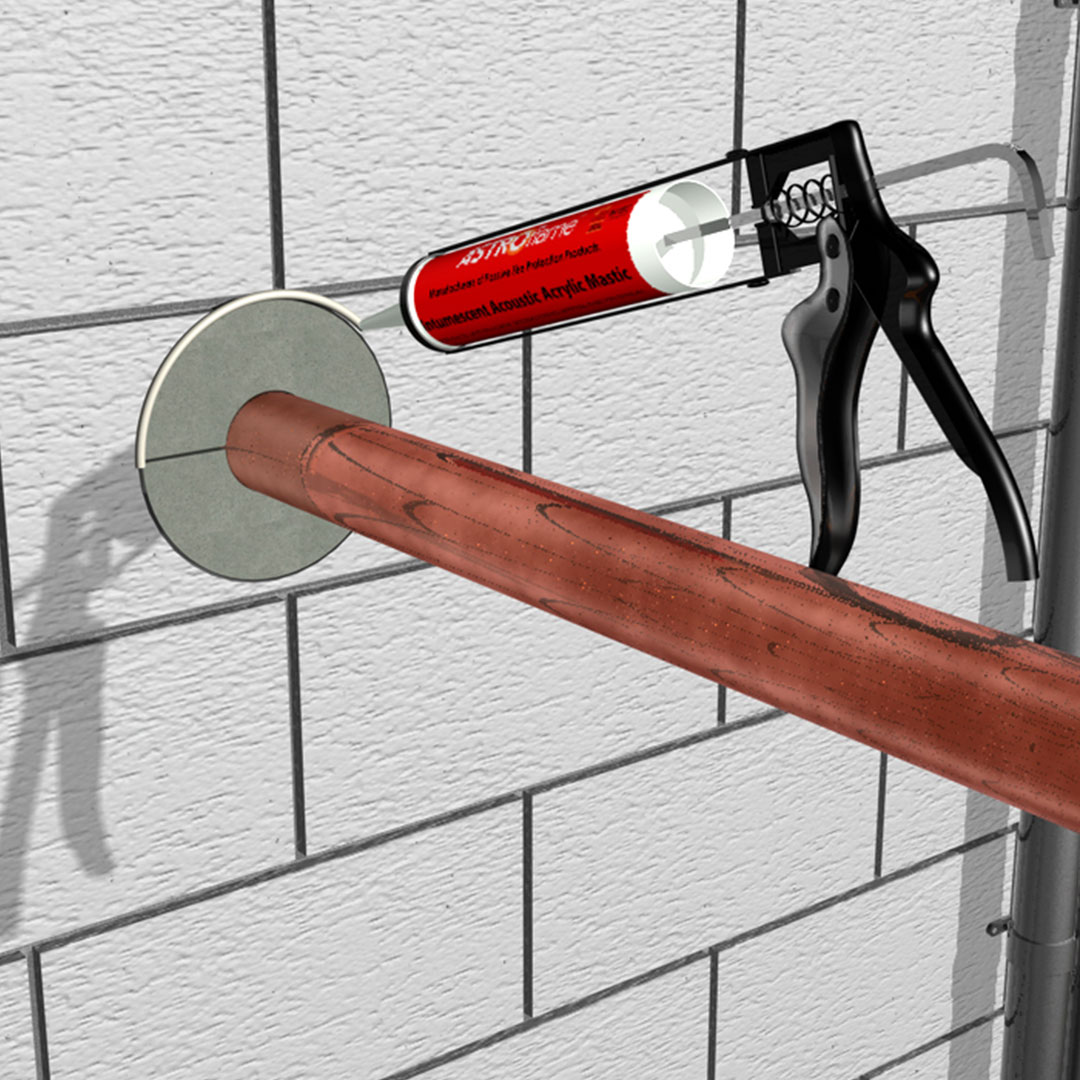

Installation

For further information on installation requirements please review the 2 installation videos (On a plaster Wall and Solid wall) or the Technical Data Sheet or contact the technical team on:

Telephone: +44 (0)1329 844 500

Email: sales@astroflame.com

Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on:

Telephone: +44 (0)1329 844 500

Email: sales@astroflame.com

< Back

Web Page

As part of our policy of ongoing improvements, we reserve the right to modify, alter or change product specifications without giving notice. Product illustrations are representations only. All information contained in this document is provided for guidance only, and as Astroflame (Fire Seals) has no control over the installation methods of the products, or of the prevailing site conditions, no warranties expressed or implied are intended to be given as to the actual performance of the products mentioned or referred to, and no liability whatsoever will be accepted for any loss, damage or injury arising from the use of the information given of products mentioned or referred to herein.

The above information to the best of our knowledge is true and accurate and based upon current test data and is supplied for your guidance only. Customers should satisfy themselves to the suitability of the product in its intended use and no guarantee is given or implied since the conditions of actual use are beyond our control. Astroflame (Fire Seals) Ltd, disclaim any liability for loss, damage or other expense arising from the use of information, data or products mentioned or referred to and reserve the right to change any details or specifications without notice.
